Laser Welding Machine
Advantages:1) High ratio of welding depth to spot diameter results in slender welding seam2) Small affected area3) Little thermal distortion4) Fast welding.5) Welding seam is smooth6) Little or no need to polish the seam after welding7) High quality welding seam with no gas bubbles8) The process can even improve the purity of the material9) Weld spot is very small and can be positioned accurately10) Two of the same material or different materials can be weldedWelding materials and applications:The laser welder can weld two pieces of the same material (titanium, nickel, tin, copper, aluminum, chromium, niobium, gold, silver, steel and their alloys), and it can weld two different materials (copper-nickel, nickel-titanium, titanium-molybdenum, brass-copper, low carbon steel-copper).It also can be applied widely to mobile phone batteries, sensors, clocks, watches, jewelry, electronic components, eye glasses, crafts precision instruments and medical apparatus.Technical data (W60):1) Max. output power of laser: 60W2) Max. pulse energy of laser (x 1): 60J3) Range of laser spot diameter: φ0.1 - 2mm4) Welding depth: 2mm5) Power supply of laser: PPS400V voltage adjustable switching power supply6) Condensation cavity: ceramic reflecting cavity (made in U.K.)7) Pump source: 3.5kW impulse Xenon lamp8) Laser rod: φ6.35mm Nd:YAG9) Pulse width: 0.3ms - 20ms10) Pulse frequency: 0.5 - 15Hz11) Max. pulse current: 540A12) Consumed power of entire machine: 3kW13) Power source: single phase 3 core mode, 220V±5%, 50Hz, 20A14) Control system: single chip15) Software: W60-1.016) Monitoring system: LEICA microscope (made in Germany) and liquid crystal lightvalve17) Internal cooling system: water chiller18) External cooling system: fan cooled19) Worktable: lever worktable20) Dimensions: 1,080mm x 600mm x 1,050mm
Advantages:1) High ratio of welding depth to spot diameter results in slender welding seam2) Small affected area3) Little thermal distortion4) Fast welding.5) Welding seam is smooth6) Little or no nee
PHANTOM-I is used to produce crystal artwork, and can engrave 2D or 3D pictures in any transparent material except tempered glass.Traditional 3D glass markers use worktable processing, with a maximum
Product Name: 3D Laser Engraving MachineModel Number: PHANTOM-IIPlace of Origin: ChinaTraditional 3D glass markers use worktable processing, with a maximum frequency of30Hz (very slow). Our working fr
Product Name: 3D Laser Engraving MachineModel Number: PHANTOM-IPlace of Origin: ChinaFeatures:This system is applied to produce crystal artwork, can engrave 2D or 3D picture intransparent materials. I
PHANTOM-I is used to produce crystal artwork, and can engrave 2D or 3D pictures in any transparent material except tempered glass.Traditional 3D glass markers use worktable processing, with a maximum

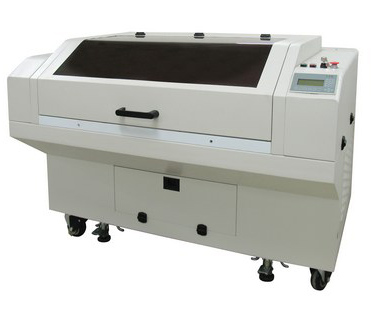

Product Name: Laser Cutting MachinePlace of Origin: ChinaFeatures:The cutters of this model have robust functions, combines the bitmap engraving, vectorcutting and laser drilling in one unit. This sys
Product Name: Laser Cutting MachineModel Number: CB1206-100Place of Origin: ChinaFeatures:Started by high-speed servo motor, has slowdown sophisticated belt drive, used fixed cutting table. Go-through
Product Name: Laser Cutting MachineModel Number: CB0906Place of Origin: ChinaThe cutter of this model has robust functions, combines the bitmap engraving, vectorcutting and laser drilling in one unit.
Features:Started by high-speed servo motor, has slowdown sophisticated belt drive, used fixed cutting table. Go-through design on Y direction can cut long article. Except the working table, other comp
