Turning Center
Specifications:1) Maximum rotary diameter: 380mm, 14.4"2) Maxximum diameter work-piece: 20mm, 12.6"3) Maximum diameter of bar stocks: 40mm, 1.57"4) Maximum turning diameter of tool turret: 150mm, 5.9"5) Maximum length of workpiece: 380mm, 14.966) Cut thread/thread cutting metric system: 0.25-12mm7) English system and system thread: 28" 31/2"8) From guideway of lathe (bed to centerline of the spindle): 195mm, 7.68"9) Maximum speed of spindle (stepless): 300-3,000r/min10) X axis maximum length of travel: 200mm, 7.88"11) Z axis maximum length of travel: 380mm, 14.4"12) Feed speed in axis X (stepless): 5-1,000mm/min13) Feed speed in axis X (stepless): 10-2,000mm/min14) Fast motion speed in axis X: 3,000mm/min15) Fast motion speed in axis Z: 6,000mm/min16) Sectional area of tool bar/sectional area of cutter bar: 20 x 20mm17) Distance between centerline of spindle and supporting surface of tool: 20mm18) Taper of the tailstock: no. 419) Maximum stroke of the tailstock: 100mm20) Power of master motor: 3kW21) Dimensions of lathe tool (L x B x H): 1,600 x 1,160 x 1,650mm22) Net weight: 850kg
Product Name: Turning CenterModel Number: CK0632Place of Origin: ChinaSpecifications of CK0632:1) Maximum rotary diameter: 380mm, 14.4"2) Maximum diameter work-piece: 20mm, 12.6"3) Maximum diameter of
Specifications:1) Maximum rotary diameter: 300mm, 11.8"2) Maxximum diameter work-piece: 100mm, 3.94"3) Maximum turning diameter of tool turret: 40mm, 4.72"4) Maximum length of workpiece: 120mm, 13.78"

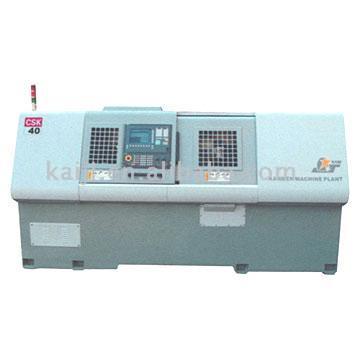

Product Name: Two Spindles Two Turrets Automatic LatheModel Number: CSK40Place of Origin: ChinaSpecifications of CSK40:1) Maximum rotary diameter: 300mm, 11.8"2) Maxximum diameter work-piece: 100mm, 3
Specifications:1) Dimensions of the surface of working table (L x W) 650 x 410mm, 25.59" x 16.14"2) Maximum carrying capacity of the crossing over working table (kg): 300 x 23) Distance between the en
Specifications:1) Dimensions of the surface of working table 700 x 360mm27.56"x14.17"2) Distance between the end of the spindle and the surface of the workingtable: 640mm, 25.20"3) Distance between th
Product Name: Vertical Machining CenterModel Number: MCV32Place of Origin: ChinaSpecifications of MVC32:1) Dimensions of the surface of working table 700 x 360mm27.56"x14.17"2) Distance between the en
Product Name: Vertical Machining CenterModel Number: DMV80DPlace of Origin: ChinaSpecifications of DMV80D:1) Dimensions of the surface of working table (L x W) 650 x 410mm, 25.59" x 16.14"2) Maximum c
Specifications of XK5030:1) Dimensions of the surface of working table: 300 x 750mm,11.81" x 29.53"2) Maximum carrying capacity of working table: 150kg3) Distance between the end of the spindle and th
