Two Spindles Two Turrets Automatic Lathe (Два шпинделя двумя башенками автоматические токарные)

Zoom in

Send Request

about this service

Producer information

Company:
Yuhuan Xian Kanmen Machine Tool Factory

Address:
Jiefangtang Farm, Yuhuan, Taizhou, Zhejiang, China (Mainland)

Phone:
+86-576-7286438

Two Spindles Two Turrets Automatic Lathe

Product Name: Two Spindles Two Turrets Automatic LatheModel Number: CSK40Place of Origin: ChinaSpecifications of CSK40:1) Maximum rotary diameter: 300mm, 11.8"2) Maxximum diameter work-piece: 100mm, 3.94"3) Maximum turning diameter of tool turret: 40mm, 4.72"4) Maximum length of workpiece: 120mm, 13.78"5) Cut thread/thread cutting metric system: 0.25-12mm6) English system and system thread: 28"-31/2"7) Height of the spindle 197mm, 7.76"8) Diameter of spindle boring: 50mm, 1.97"9) Maximum speed of spindle (stepless): 100-3,000r/min10) X axis maximum length of travel: 220mm, 8.66"11) Z axis maximum length of travel: 280mm, 11"12) Sroke of right spindle in axis Z2: 350mm, 13.78"13) Feed speed in axis X (stepless): 0-2,000mm/min14) Feed speed in axis X (stepless): 0-1,000mm/min15) Fast motion speed in axis X: 2,400mm/min16) Fast motion speed in axis Z: 1,200mm/min17) Sectional area of tool bar/sectional area of cutter bar: 25 x 25mm18) Distance between centerline of spindle and supporting surface of tool:25mm19) Power of master motor: 3,7kW20) Dimensions of lathe tool (L x B x H): 2,080 x 1,300 x 1,70mm21) Net weight: 3,500kg

Add to Basket

Web address

Other goods of this manufacturer :

Vertical Machining Center
	Specifications:1) Dimensions of the surface of working table (L x W) 650 x 410mm, 25.59" x 16.14"2) Maximum carrying capacity of the crossing over working table (kg): 300 x 23) Distance between the en

Vertical Machining Center
	Specifications:1) Dimensions of the surface of working table 700 x 360mm27.56"x14.17"2) Distance between the end of the spindle and the surface of the workingtable: 640mm, 25.20"3) Distance between th

Vertical Machining Center
	Product Name: Vertical Machining CenterModel Number: MCV32Place of Origin: ChinaSpecifications of MVC32:1) Dimensions of the surface of working table 700 x 360mm27.56"x14.17"2) Distance between the en

Vertical Machining Center
	Product Name: Vertical Machining CenterModel Number: DMV80DPlace of Origin: ChinaSpecifications of DMV80D:1) Dimensions of the surface of working table (L x W) 650 x 410mm, 25.59" x 16.14"2) Maximum c

Vertical Miller
	Specifications of XK5030:1) Dimensions of the surface of working table: 300 x 750mm,11.81" x 29.53"2) Maximum carrying capacity of working table: 150kg3) Distance between the end of the spindle and th

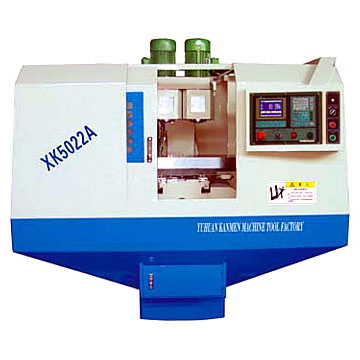

Vertical Miller
	Specifications of XK5022A:1) Dimensions of the surface of working table: 900 x 220mm, 35.43" x 8.66"2) Maximum carrying capacity of working table: 50kg3) Distance between the end of the spindle and th

Vertical Miller
	Specifications:1) Working table (L x W): 750 x 300mm2) X spindle table stroke: 400mm3) Z spindle table stroke: 300mm4) Y spindle table stroke: 300mm5) X spindle impulse equivalent: 0.01mm6) Z spindle

Vertical Miller
	Product Name: Vertical MillerModel Number: XK5030Place of Origin: ChinaSpecifications of XK5030:1) Working table (L x W): 750 x 300mm2) X spindle table stroke: 400mm3) Z spindle table stroke: 300mm4)

Vertical Miller
	Specifications of XK5022A:1) Dimensions of the surface of working table: 900 x 220mm, 35.43" x 8.66"2) Maximum carrying capacity of working table: 50kg3) Distance between the end of the spindle and th
