5 Gallon Blow Moulding Machine
Settings:1) PLC colour display: OMRON (Japan)2) Pneumatic parts:FESTO (Germany)3) Blowing valve: American Parker4) Other electric parts are all world-famous brandZQ22-V stretch blow molding machine is specially designed to produce 5-gallon bottleand 25L wide mouth jar. Its output is up to 90 BPH for 5-gallon bottle and even could reach 120 bottles per hour in certain case.ZQ22-V consists of main unit and rotary infrared heater. The ordinary quartz lampcannot heat preform ideally because the preform wall is excessively thick. The infrared heater with high penetrative force can heat the inside and outside of preform simultaneously and keep preform in even heating, therefore high shaping quality.What an operator should do during production is just to put heated preform into theblow mold and press the switch, and then computer will take care of the wholeprocedure.Features:1) Special design for PET Gallon Bottle up to 6 Gallon2) Produce wide mouth jar up to 25 liter with neck size up to 200mm3) Using Infrared reheat units to achieve uniform heating throughout the wall ofpreform4) Adopts special designed preform heating system to ensure the optimal heatingeffect for 730g thick-wall preform5) Special designed fan-cooling system in the heating channels to keep the oven withconstant temperature and ensure the preform can be heated completely6) Water cooling system ensures the quality of preform neck7) Up to 90 bottles/hour using one-cavity mold for 5-gallon bottle8) Uses advanced PLC control system with counting function and time-control precisionto 0.01second, and a use-friendly panel9) Equipped with special designed air storage units10) Simple installation & startup adjustmentSpecifications:1) Product volume: 3 – 6 gallons2) Theoretical output: 400pcs/h of 13L, 90pcs/h of 5 gallons3) Space of bar: 420 x 460mm4) Mould stroke: 340mm5) Mould thickness: 330 - 370mm6) Dimensions: 2.70 x 0.85 x 2.50m7) Weight: 1,800kg
Settings:1) PLC color display: Omron (Japan)2) Pneumatic parts: Festo (Germany)3) Blowing valve: American Parker4) Other electric parts are all world-famous brandZQ22-V stretch blow molding machine is
Settings:1) PLC color display: OMRON (Japan)2) Pneumatic parts: FESTO (Germany)3) Blowing valve: American PARKER4) Other electric parts are all world-famous brandZQ22-D series, newly developed by our
Settings:1) PLC color display: OMRON (Japan)2) Pneumatic parts: FESTO (Germany)3) Blowing valve: American PARKER4) Other electric parts are all world-famous brandZQ-A series PET Blow moulding machine@

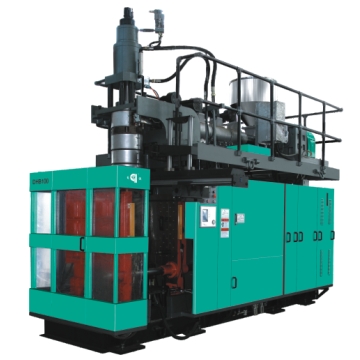

Automatic extrusion blow moulding machine adopts high quality components with both pneumatic and mechanical systems, and is suitable for producing PE, PP, and PC container products.Features:The 20L-16
Settings:1) PLC color display: OMRON (Japan)2) Pneumatic parts: FESTO (Germany)3) Blowing valve: American PARKER4) Other electric parts are all world-famous brandZQ-R4 PET blowing bottle machine is th
Settings:1) PLC colour display: OMRON (Japan)2) Pneumatic parts:FESTO (Germany)3) Blowing valve: American ParkerZQ22-III-D semi-automatic stretch blow molding machine has been improved on the base of
Settings:1) PLC colour display: OMRON (Japan)2) Pneumatic parts:FESTO (Germany)3) Blowing valve: American ParkerZQ22-III-D semi-automatic stretch blow molding machine has been improved on the baseof Z
