Description

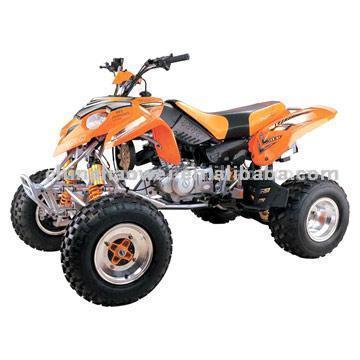

ATV Specifications:1) Engine type: single cylinder, water-cooled, four strokes2) Power: 10.3kW / 7,500rpm3) Max. torque: 14.2Nm / 6,500rpm4) Min. ground clearance: 140mm5) Wheel base: 1,000mm6) Fuel tank capacity: 4L7) Transmission mode: chain8) Start mode: electric9) Tires:a) Front wheels: 19 x 7-8b) Rear wheels: 18 x 9.50-810) Max. speed: ≥70km/h11) Break type (F/R): drum/disc12) Power source: 12V, 9Ah13) Height of seats: 800mm14) Dry weight: 150kg15) Load capacity: 150kg16) Climbing degree:≥25°C17) Front hanging:arm-swing18) Rear hanging: integral19) Cylinder size: 63.5 x 62.2mm20) Displacement: 196.98mL21) Transmission: 4 gears with reverse gear , manual clutch22) Min. turning radius: 2,400mm23) Parking trig: mechanical lock24) Ignition mode: CDI25) Engine oil: 1L26) Gear oil: 0.2L27) Max. number of riders: 128) Lubrication: press splash29) Compression proportion: 10.5:130) Gas cylinder number: 131) Product dimensions (L x W x H): 1,850 x 980 x 1,080mmOuter packing:Carton dimensions: 1,485 x 835 x 770mmConveyance:Qty/20` GP: 29 unitsQty/40` GP: 64 unitsQty/40` HQ: 66 units Add to Basket
Web address
Other goods of this manufacturer :
ATV
Specifications:1) Engine type: single cylinder, air-cooling, 4-stroke2) Power: 4.6kW / 7,500rpm3) Max. torque: 6.5N.m / 6,000rpm4) Min. ground clearance: 100mm5) Wheel base: 1, 020mm6) Fuel tank capac
ATV
Specifications:1) Engine type: single cylinder, air cooling, four stroke2) Power: 14.7kW/8,000r/min3) Max. torque: 20N.m/6,000r/min4) Min. ground clearance: 130mm5) Wheel base:1,240mm6) Fuel tank capa
ATV
Specifications:1) Engine type: single cylinder, water cooling, four-stroke, under the cam2) Power: 11.5KW/6,500r/min3) Max. torque: 17.5N.m/6,500r/min4) Min. ground clearance: 130mm5) Wheel base: 1,30
ATV
Specifications:1) Engine type: single cylinder, air-cooled, 4-stroke2) Power: 10kW/7,500rpm3) Max. torque: 15N.m/6,000rpm4) Min. ground clearance: 155mm5) Wheel base: 1,160mm6) Fuel tank capacity: 11L
ATV
Specifications:1) Engine type: single cylinder, water-cooled, 4-stroke2) Power: 10.3kW/7,500rpm3) Max. torque: 15N.m/6,000rpm4) Min. ground clearance: 120mm5) Wheel base: 1,150mm6) Fuel tank capacity:
ATV
Specifications:1) Engine type: single cylinder, air-cooled, 4-stroke2) Power: 9.9kW/6,500rpm3) Max. torque: 14.9N.m/5,500rpm4) Min. ground clearance: 155mm5) Wheelbase: 1,175mm6) Fuel tank capacity: 1
ATV
Specifications:1) Engine type: single cylinder, water-cooled, four-stroke2) Power: 10.5kW/7,500rpm3) Max. torque: 15N.m/5,500rpm4) Min. ground clearance: 155mm5) Wheel base: 1,160mm6) Fuel tank capaci
ATV
Specifications:1) Engine type: single-cylinder, compelled air-cooled, 4-stroke2) Power: 5.2kW / 7,500rpm3) Max. torque: 8.5N.m / 6,000rpm4) Min. ground clearance: 150mm5) Wheel base: 1,100mm6) Fuel ta
ATV
Specifications:1) Engine type: single cylinder, air-cooled, 4-stroke2) Power: 14.7kW/8,000rpm3) Max. torque: 20N.m/6,000rpm4) Min. ground clearance: 120mm5) Wheel base: 1,220mm6) Fuel tank capacity: 1
