Vehicles, Spare Parts & Accessories / Parts and Accessories for Vehicles / Parts and Accessories for Automobile Vehicles / Car Audio and Video /

ATV (EEC Approval) (ATV (ЕЭС утверждения))

Zoom in

Producer information

Company:
Yongkang Haili Industrial Co., Ltd.

Address:
Lieqiao,Xicheng Street, Yongkang, Zhejiang, China (Mainland) Zip: 321300

Phone:
+86-579-7292782

ATV (EEC Approval)

Features:1) Engine type: single cylinder, 4-strock, SOHC2) Displacement: 255cc3) Max. power: 12.5kW / 7,500rpm4) Max. torque: 17.6N.m / 5,500rpm5) Cooling: liquid cooled6) Lubrication: wet sump7) Carburetor: CVK308) Ignition: DC-CDI9) Starting: electric10) Shaft drive11) Transmission: CVT / FNR12) Front suspension: strut with 3 in travel13) Rear suspension: progressive rate swing arm with 7 in travel14) Front / rear brakes: single lever hydraulic disc15) Auxiliary brakes: rear hydraulic disc16) Parking: hydraulic disc, all wheels17) Front tires: 25 x 8-1218) Rear tires: 25 x 10-1219) Dimensions (L x W x H): 82.7 x 47.2 x 49.2in. / 2,100 x 1,200 x 1,250mm20) Seat height: 34in. / 865mm21) Wheel base: 50.4in. / 1,280mm22) Turn radius: 129in. / 3,277mm23) Ground clearance: 7.5in. /190mm24) Dry weight: 616Ibs / 280kg25) Max. speed: 55km/h26) Max. climbing ability: 30 degrees27) Front rack: 40Ibs / 18kg28) Rear rack: 80Ibs / 36kg29) Hitch towing: 450Ibs / 200kg30) Battery: 12V 14A31) Head light: 35W / 35W32) Brake / tail lights: 21W / 5W

Add to Basket

Web address

Other goods of this manufacturer :

ATV (HGL2002-110BD2)
	Features:1) Engine: 110cc, semi-automatic2) Max. loading: 150kg3) Ground clearance: 130mm4) Front wheel: 19/7-85) Rated power: 4.6kW/7,500rpm6) Max. torque: 6.5N.m/6,500r/min7) Compression ratio: 9.2:

ATV (HGL2002-150ARD)
	Features:Engine:1) Engine type: single cylinder, 4-stroke, air-cooled2) Engine displacement (ml): 149.53) Bore x stroke (mm): 57.4 x 57.84) Max power (km/(r/min)): 8.0/8,0005) Max torque(r/min): 9.0/6

ATV (HGL2002-200BDW2)
	Specifications:1) Engine type: single cylinder, water-cooled, 4-stroke2) Max. speed (km/h): 903) Transmission system: chain drive4) Piston displacement (ml): 200cc5) Maximum power (kW/rpm): 12.5kW/8,0

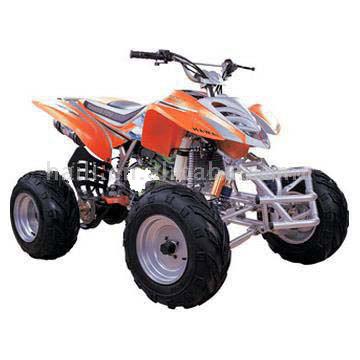

ATV (HGL2006-200BDW3)
	Features:1) Dimensions (L x W x H): 180 x 112 x 113cm2) Wheel base: 115cm3) Engine type: single cylinder, water-cooled, 4-stroke4) Start mode: electric5) Power: 10.3kW/7,500rpm6) Max. torque: 15N.m/6,

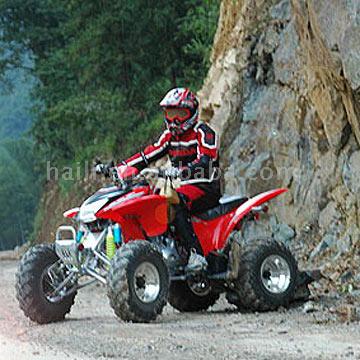

ATV (HGL2006-250BDW1)
	Specifications:1) Engine: 250cc, 4 stroke, air cooled2) Max. loading: 165kg3) Ground clearance: 155mm4) Front wheel: At 22 x 7-105) Rear Wheel: At 22 x 10-106) Rated power: 11.5kW/6,500rpm7) Max power

ATV (HGL2006-250C)
	Features:1) Dimensions (L x W x H): 192 x 103 x 120cm2) Wheel base: 116cm3) Engine type: single cylinder, air-cooling, 4-stroke4) Start mode: electric / manual5) Power: 10kW/7,500rpm6) Max. torque: 15

ATV (SP202A
	Features:1) Product name: 49cc ATV (excellent performance in novel design for off-road use)2) Engine: 4-stroke, air-cooled3) Product dimensions: 1,200 x 700 x 830mm 4) Starting system: electrical star

ATV (SP205)
	Features:1) Engine: 50/70/90/110cc, full automatic2) Power: 2.3kw/8,500rpm3) Max. torque: 2.7N.m/6,500rpm4) Max. speed: 40km/h5) Ground clearance: 90mm6) Transmission system: chain drive7) Brake: disk

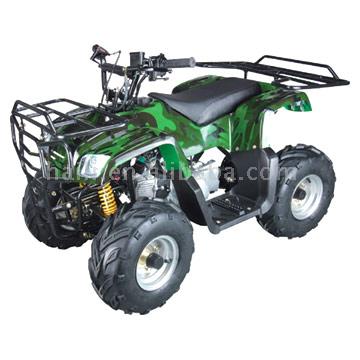

ATV (SP206)
	Specifications:1) Engine: 50cc, singly cylinder, 4 strokes, natural air cooled2) Load: 75kg3) Weight: 79kg4) Wheelbase: 750mm5) Wheel tread: front: 515; rear: 5706) Seat height: 560mm7) Ground clearan
