Description
ATV (HGL2006-250C) Features:1) Dimensions (L x W x H): 192 x 103 x 120cm2) Wheel base: 116cm3) Engine type: single cylinder, air-cooling, 4-stroke4) Start mode: electric / manual5) Power: 10kW/7,500rpm6) Max. torque: 15N.m/6,000rpm7) Max. speed: 60km/h8) Min. ground clearance: 155mm9) Dry weight: 240kg10) Transmission mode: shaft drive11) Break type (F/R): disc / drum12) Power source: 12V, 14Ah13) Climbing degree: 25°14) Fuel tank capacity: 11L15) Front hanging: arm-swing16) Rear hanging: integral17) Tires:a) Front wheels: 22 x 7 - 10b) Rear wheels: 22 x 10 - 1018) Cylinder size: 71 x 58mm19) Displacement: 229.6ml20) Transmission: 5 gears, automatic clutch21) Height of seats: 82cm22) Min. turning radius: 290cm23) Parking trig: mechanical lock24) Ignition mode: CDI25) Load capacity: 165kg26) Engine oil: 1.6L27) Gear oil: 0.25L28) Max. number of riders: 129) Lubrication: press splash31) Gas cylinder number: 1Outer packing:Dimensions: 197 x 112 x 88cmConveyance:Qty/20` GP: 10 unitsQty/40` GP: 24 unitsQty/40` HQ: 36 units Add to Basket
Web address
Other goods of this manufacturer :
ATV (SP202A
Features:1) Product name: 49cc ATV (excellent performance in novel design for off-road use)2) Engine: 4-stroke, air-cooled3) Product dimensions: 1,200 x 700 x 830mm 4) Starting system: electrical star
ATV (SP205)
Features:1) Engine: 50/70/90/110cc, full automatic2) Power: 2.3kw/8,500rpm3) Max. torque: 2.7N.m/6,500rpm4) Max. speed: 40km/h5) Ground clearance: 90mm6) Transmission system: chain drive7) Brake: disk
ATV (SP206)
Specifications:1) Engine: 50cc, singly cylinder, 4 strokes, natural air cooled2) Load: 75kg3) Weight: 79kg4) Wheelbase: 750mm5) Wheel tread: front: 515; rear: 5706) Seat height: 560mm7) Ground clearan
ATV HGL2002-110B
Specifications:1) Engine type: single cylinder, 4 stroke, air-cooled2) Engine displacement (ml): 1093) Bore x stroke (mm): 52 x 49.54) Max. power (km/(r/min)): 6/80005) Max. torque (r/min): 7/60006) M

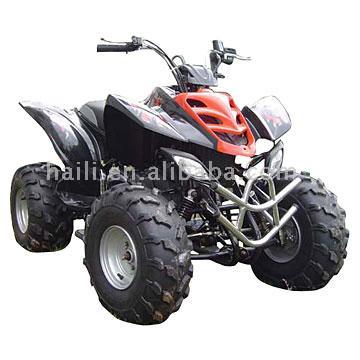

ATV HGL2002-150AR
Features:1) Engine type: single cylinder, 4 stroke, air-cooled2) Engine displacement (ml): 149.53) Bore x stroke (mm): 57.4 x 57.84) Max. power (km/(r/min)): 8.0/80005) Max. torque (r/min): 9.0/60006)

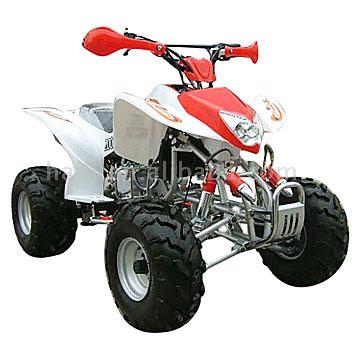

ATV HGL2002-250BD2
Features:1) Engine type: single cylinder, air-cooled, 4-stroke2) Max. speed: 95km/h3) Transmission system: chain drive, reverse4) Piston displacement (ml): 250cc5) Starting system: electric start6) Se

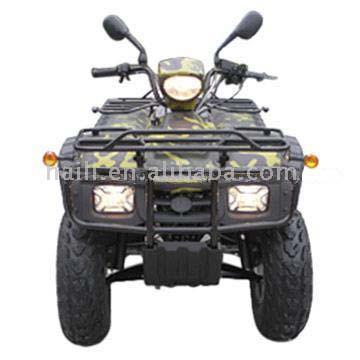

ATV HGL2003-250A
Specifications:1) Engine type: 4-stroke, air cooled2) Transmission system: shaft drive with reverse3) Bore x stroke (mm): 71 x 584) Piston displacement (ml): 229.6, Jianshe Yamaha5) Maximum power (kW/
ATV HGL2006-250BDW2
Specifications:1) Engine type: 250cc, single cylinder, water-cooled, 4-stroke2) Power: 11.5kW/6500r/min3) Max. torque: 17.5N.m/5,500r/min4) Min. ground clearance: 120mm5) Wheel base: 1,150mm6) Fuel ta

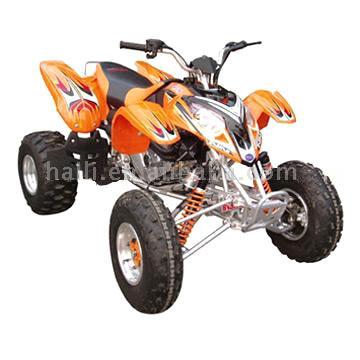

ATV HGL2006-300BD
Features:1) Dimensions (L x W x H): 184 x 120 x 117cm2) Wheel base: 123mm3) Engine type: single cylinder, air-cooling, 4-stroke4) Start mode: electric5) Power: 14.7kW/8,000rpm6) Max. torque: 20N.m/6,0
