Producer information

Company:
Yongkang Haili Industrial Co., Ltd.

Address:
Lieqiao,Xicheng Street, Yongkang, Zhejiang, China (Mainland) Zip: 321300

Phone:
+86-579-7292782

ATV HGL2002-110B

Specifications:1) Engine type: single cylinder, 4 stroke, air-cooled2) Engine displacement (ml): 1093) Bore x stroke (mm): 52 x 49.54) Max. power (km/(r/min)): 6/80005) Max. torque (r/min): 7/60006) Minimum fuel comsumption (g/kW/h): 3677) Top speed (km/h): 558) Start mode: electric9) Transmission mode: chain10) Brake mode: drum/drum11) Brake distance (m/30km): 712) Length x width x height (mm): 1590 x 870 x 99013) Minimum turning radius (mm): 300014) Climbing degree: 2715) Lamp head lamp16) Seat height (mm): 67017) Minimum ground clearance (mm): 12018) Tyre dimension (front/rear): 19 x 7-8 / 18 x 9.5-819) Cover material: PP20) Colors: red, blue, greenOuter packing:Carton dimensions: 1480 x 860 x 760mmN.W. :130kgG.W. :155kgConveyance:Qty/20` FCL: 30pcsQty/40` FCL: 66pcsQty/40` HQ: 66pcs

Add to Basket

Web address

Other goods of this manufacturer :

ATV HGL2002-150AR
	Features:1) Engine type: single cylinder, 4 stroke, air-cooled2) Engine displacement (ml): 149.53) Bore x stroke (mm): 57.4 x 57.84) Max. power (km/(r/min)): 8.0/80005) Max. torque (r/min): 9.0/60006)

ATV HGL2002-250BD2
	Features:1) Engine type: single cylinder, air-cooled, 4-stroke2) Max. speed: 95km/h3) Transmission system: chain drive, reverse4) Piston displacement (ml): 250cc5) Starting system: electric start6) Se

ATV HGL2003-250A
	Specifications:1) Engine type: 4-stroke, air cooled2) Transmission system: shaft drive with reverse3) Bore x stroke (mm): 71 x 584) Piston displacement (ml): 229.6, Jianshe Yamaha5) Maximum power (kW/

ATV HGL2006-250BDW2
	Specifications:1) Engine type: 250cc, single cylinder, water-cooled, 4-stroke2) Power: 11.5kW/6500r/min3) Max. torque: 17.5N.m/5,500r/min4) Min. ground clearance: 120mm5) Wheel base: 1,150mm6) Fuel ta

ATV HGL2006-300BD
	Features:1) Dimensions (L x W x H): 184 x 120 x 117cm2) Wheel base: 123mm3) Engine type: single cylinder, air-cooling, 4-stroke4) Start mode: electric5) Power: 14.7kW/8,000rpm6) Max. torque: 20N.m/6,0

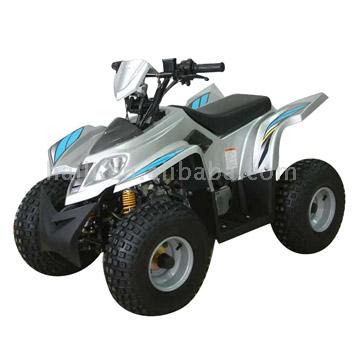

ATV SP208
	Features:1) Engine: 90cc/110cc four stroke2) Fully-automatic3) Starting system: electric4) Seat height: 76cm5) Transmission: chain6) Power: 52 kW/7.500r/min7) Ignition: CDI8) Ground clearance: 12cm9)

Dirt Bike
	Features:1) Displacement: 124cc2) Type: 4 stroke single cylinder3) Cooling: oil-cooled4) Transmission: manual 4 speed with clutch5) Shifter: long / folding6) Drive train: chain7) Ignition: kick start

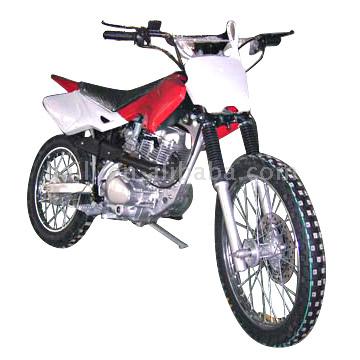

Dirt Bike (SP200GY-A)
	Engine:1) Displacement: 149cc2) Type: 4 stroke single cylinder3) Cooling: air cooled4) Transmission: manual 4 speed w/clutch5) Shifter: long/folding6) Drive: chain7) Ignition: kick start /CDI8) Compre

Dirt Bike (XY250GY)
	Specifications:1) Product dimensions (L x W x H): 2,130 x 880 x 1,180mm2) Wheelbase: 1,440±15(mm)3) Ground clearance: 180±15(mm)4) Max. speed: 120.0km/h5) Max. load: 150.0kg6) Displacement:
