Company:
Zhejiang Wanjin Industry Co., Ltd.

Address:
Yantou Industrial Zone,Zhiying, Yongkang, Zhejiang, China (Mainland) Zip: 321306

Phone:
+86-579-7431755

ATV (150cc)

Specifications:1) Engine model: GY62) Engine style: single cylinder, air-cooled, 4-stroke3) Bore x stroke: 57.4 x 57.8mm4) Ignition: C.D.I.5) Lubrication: pressure / splash6) Max. power: 7.0/7,000; 150kW/r/min7) Max. torque: 8.8/5,500; 150N.m/r/min8) Impression ratio: 8.8 :19) Starting type: electric / foot10) Max. speed: 55km/h11) Oil consumption:12) Max. noice: 80dB13) Transmission: CVT14) Parameter of motorcycle15) Dimension (L x W x H): 1,625 x 860 x 960mm16) Wheel base: 1050mm17) Gross weight: 145kg18) Dry weight: 125kg19) Transmission type: chain driven20) Tyre and rim: F.: 19 x 7 - 8 / R.: 18 x 9.50 - 821) Brake style: F. Drum / R. Dick22) Absorber style: F.: Doul Suspension/ R.: Single absorber23) Displacement: 149.5ml24) Oiltank capacity: 7.5L25) Climbing ability: >25`26) Max. load: 95kgOuter packing:Carton dimensions (L x W x H): 1,485 x 835 x 720mmConveyance:Qty/20` FCL: 29pcsQty/40` HQ: 66pcs

Add to Basket

Web address

Other goods of this manufacturer :

ATV (200cc)
	Specifications:1) Engine model: CG 162FMJ2) Engine style: single cylinder, air-cooled, 4-stroke3) Bore x stroke: 62 x 57.8mm4) Ignition: CDI5) Lubrication: pressure / splash6) Max. power: 9.5kW / 8,00

ATV (250cc)
	Specifications:1) Engine type: 4-stroke, air cooled, semi-automatic2) Power: 12kW / 9,000r/min3) Max. torque: 13N.m/7,000r/min4) Max. speed: 65Km/h　　5) Ground clearance: 140mm6) Transmis

ATV (50cc, 70cc)
	Specifications:1) Engine type: 4-stroke, air cooled, CVT2) Broe x stoke: 39 x 41.4mm3) Max. speed: 45km/h4) Ground clearance: 100mm5) Transmission style: chain drive6) Brake (rear): disc7) Start: elec

ATV (50cc, 70cc)
	Specifications:1) Engine: 4-stroke, one cylinder, air-cooled2) Engine displacement (cc): 493) Max. power: 2.3/8,500kW/rpm4) Max. torque: 2.7/6,500N.m/rpm5) Compression ratio: 7:16) Max speed: 40km/h7)

ATV (50cc, 70cc)
	Features:1) Engine type: 4-stroke, air-cooled, CVT2) Engine displacement (cc): 703) Bore x stroke (mm): 47 x 41.44) Max. power (kW/rpm): 3.7/8,5005) Max. torque (N.m/rpm): 4.5/6,0006) Compression rati

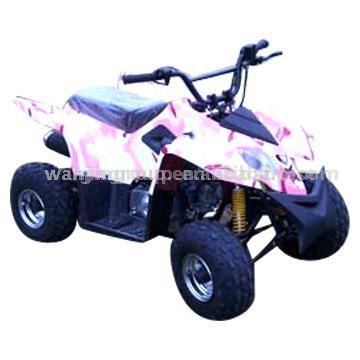

ATV (90cc) (WJ90ST)
	Features:1) Engine: 4-stroke, one cylinder, air-cooled2) Engine displacement (cc): 50cc / 70cc / 90cc / 110cc3) Max. speed: 65km/h4) Start mode: electric start5) Transmission mode: chain6) Brake syste

ATV (90cc,110cc)
	Specifications:1) Engine type: 4-stroke, air-cooled, fully-automatic2) Cylinder arrangement: single cylinder3) Transmission system: chain drive4) Bore x stroke (mm): 41 x 375) Piston displacement (cc)

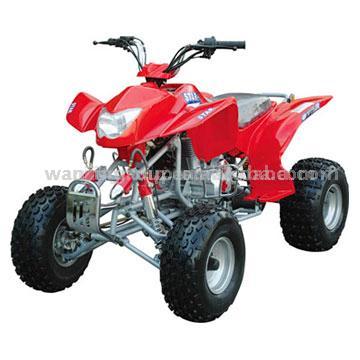

ATV (ATV 250cc)
	Features:1) Dimensions: 1,480 x 835 x 760mm2) Dry weight: 150kg3) Engine type: 4-stroke, water-cooled4) Clutch: manual5) Max. torque: 6.5kW/5,500-6,000rpm6) Ground clearance: 130mm7) Transmission: 4-s

ATV (ATV 70cc)
	Features:1) Dimensions: 1,470 x 850 x 770mm2) Dry weight: 130kg3) Engine type: 4-stroke, air-cooled4) Power: 5.2kW/7,500rpm5) Max. torque: 7.0kW/7,500rpm6) Ground clearance: 130mm7) Transmission: chai
