Description |
 |
|
|
|
|
|
|
|
|
|
ATV (90cc,110cc)
Specifications:1) Engine type: 4-stroke, air-cooled, fully-automatic2) Cylinder arrangement: single cylinder3) Transmission system: chain drive4) Bore x stroke (mm): 41 x 375) Piston displacement (cc): 496) Compression ratio: 7.8:17) Maximum power (kW/r/min): 2.4/5,9008) Maximum torque (N.m./rpm): 3.9/5,5009) Starter system: electric stater10) Lubrication: oil injection11) Transmission: single speed12) Dimensions (L x W x H) (mm): 1,335 x 730 x 78013) Wheel base (mm): 82814) Front track (mm): 53015) Rear track (mm): 53016) Seat height (mm): 54217) Ground clearance (mm): max. 11018) Rider capacity: 1 person19) Gross weight (kg): 6820) Dry weight (kg): 9021) Brake (front/rear): drum/disc22) Tyre:a) Front: AT16 x 8-7b) Rear: AT16 x 8-723) Air pressure (front tyre) (KPa): 2024) Air pressure (rear tyre) (KPa): 2025) Ignition type: C.D.I26) Fuel tank capacity (L): 3.227) Engine oil capacity (L): 0.628) Front suspension: double a-arm29) Rear suspension: single swing30) Parking brake: mechanical31) Max. speed (km/h): 2332) Max. load capacity (kg): 4533) Battery: 12V/5A34) Packing dimensions (mm): 1,310 x 750 x 63035) Cooling system: air-cooled36) Clutch: auto
 Add to Basket
 Web address
|
|
|
Other goods of this manufacturer : |
|
|
|
|
ATV (ATV 250cc)
|
|
Features:1) Dimensions: 1,480 x 835 x 760mm2) Dry weight: 150kg3) Engine type: 4-stroke, water-cooled4) Clutch: manual5) Max. torque: 6.5kW/5,500-6,000rpm6) Ground clearance: 130mm7) Transmission: 4-s
|
| |
|
ATV (ATV 70cc)
|
|
Features:1) Dimensions: 1,470 x 850 x 770mm2) Dry weight: 130kg3) Engine type: 4-stroke, air-cooled4) Power: 5.2kW/7,500rpm5) Max. torque: 7.0kW/7,500rpm6) Ground clearance: 130mm7) Transmission: chai
|
| |
|
ATV (EPA 110CC)
|
|
Specifications:1) Engine type: 4-stroke, air cooled, fully automatic2) Max. speed: 50km/h3) Max. torque: 7.0N.m/7,500r/min4) Max. power: 5.2kW/7,500r/min5) Ground clearance: 130mm6) Transmission style
|
|
|
|
ATV (WJ100ST-2-A)
|
|
Features:1) Dimensions (L x W x H): 1,470 x 850 x 770cm2) Dry weight: 130kg3) Engine type: 4-stroke, air cooled, fully-automatic4) Power: 5.2kW / 7,500rpm5) Max. torque: 7.0N.m / 7,500rpm6) Max. speed
|
| |
|
ATV (WJ110ST 110cc)
|
|
Product Name: ATV (WJ110ST 110cc)Model Number: WJ110STPlace of Origin: ChinaSpecifications1) Engine type: 4-stroke air cooled fully-automatic2) Power: 5.2kW/7,500r/min3) Max. torque: 7.0N.m/7,500r/min
|
| |
|
ATV (WJ150ST 150cc/200cc)
|
|
Product Name: ATV (WJ150ST 150cc/200cc)Model Number: WJ150STPlace of Origin: ChinaSpecifications:1) Engine type: 4-stroke, air cooled2) Power: 8.0Kw/9,000r/min3) Maximum torque: 9.5N.m/7,500r/min4) Ma
|
|
|
|
ATV (WJ150ST-2 150cc)
|
|
Product Name: ATV (WJ150ST-2 150cc)Model Number: WJ150ST-2Place of Origin: ChinaSpecifications:1) Engine model: GY62) Engine style: single cylinder, air-cooled, 4-stroke3) Bore x stroke: 57.4 x 57.8mm
|
| |
|
ATV (WJ200ST-2-B)
|
|
Specifications:1) Displacement: 200cc 2) Engine type: 4-stroke, water-cooled, with reverse gear 3) Cylinder arrangement: single cylinder 4) Transmission system: chain 5) Bore x stroke (mm): 52.4 x 49.
|
| |
|

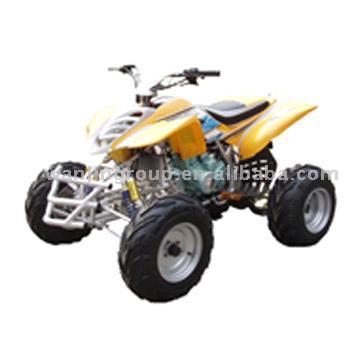

ATV (WJ200ST-2-B)
|
|
|
Specifications:1) Displacement: 200cc2) Engine type: 4-stroke, water-cooled, with reverse gear3) Cylinder arrangement: single cylinder4) Transmission system: chain5) Bore x stroke (mm): 52.4 x 49.56)
|
|
|
|
