Hyperbolic Mirror
Hyperbolic mirrors are intended to form the image of object in focal plane, and normallyare used in astronomy telescopes, as well as other optical systems demandingbroadband reflection and excellent photographic effect. For example, R-C telescopesutilize two hyperbolic mirrors as the primary and secondary mirror, which also results in a smaller spot size on and off axis. Cassegrain telescopes have primary parabolic mirrors focusing their rays onto a convex hyperbolic secondary mirror, which yields excellent correction over moderatefields both for visual and photographic astronomy.Like ellipsoidal mirrors and parabolic mirror, hyperbolic mirror can be on-axisor off-axis. They can be made of a variety of materials, including BK7 glass,copper, fused silica, UV grade fused silica, nickel, and other optical glasses.Common coatings include none (uncoated), enhanced aluminum, protected aluminum,dielectric, protected gold and silver.We can provide both on-axis and off-axis hyperbolic mirrors with the shape of eitherconvex or concave. Our company specializes in the production of medium to large-sizecustom hyperboloid with exacting tolerances, high grade surface finish anddifficult coatings. Surface accuracy can be verified by the Foucault test or onthe Zygo interferometer.Specifications:1) Material: BK7 (K9)2) Diameters: Φ25.4 - 460mm3) Types: on-axis, off-axis4) Surface quality: up to 10 - 5 S&D5) Surface accuracy: up to λ/206) Clear aperture: ≥90%7) Diameter tolerance: +(0.1 - 1) / -0.0mm (depends on dimension)8) Focal length tolerance: ±(1% - 1.5%) (depends on dimension)9) Bevel: (0.1 - 2mm) x 45° (depends on dimension)10) With coating
Meniscus lenses are often employed in conjunction with another lens to produce an optical system having either a longer or shorter focal length than the original lens.We specialize in the production o
Parabolic mirrors offer excellent correction of spherical aberrations, and are availablein both on-axis and off-axis specifications. On-axis parabolic mirrors producecollimated reflected light, while
Optical windows are used to isolate different physical environments while allowing light to pass relatively unimpeded. The selection of a window should consider the properties of the different optical
This kind of lens is used to increase focal lengths in existing systems. It is more suitable than equi-concave lens if the magnification lies in the range m0.2.We specialize in the production of mediu

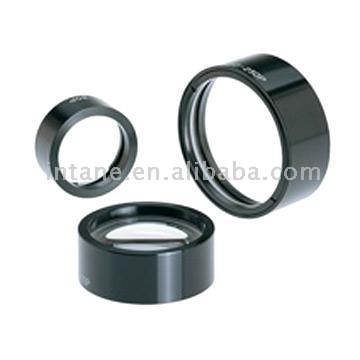

All our achromatic doublets are computer optimized to minimize aberrations and coma, and are supplied either multilayer coated or with a single layer anti-reflection coating suitable for the ultra-vio
These lenses have a large range of lengths and are the optimum shape for producingreal images at 1:1 magnification. In a single lens application you should considerusing them in preference to a single
Our ED apochromats use a very high homogeneity ED glass as the center element, fullmulti-coatings on all required surfaces, a fully temperature compensated lenscell, and zonal correcting non-equal int
Ellipsoidal mirrors have two conjugate foci. Light from one focus passes throughthe other after reflection. Ellipsoids collect a much higher fraction of total emittedlight than a spherical mirror or c
Ellipsoidal mirrors have two conjugate foci. Light from one focus passes throughthe other after reflection. Ellipsoids collect a much higher fraction of total emittedlight than a spherical mirror or c
