Producer information

Company:
FOCtek Photonics, Inc.

Address:
West Side of Building 32, Juyuanzhou Industrial Park, 618 Jinshan Avenue, Cangshan, Fuzhou, Fujian, China (Mainland) Zip: 350002

Phone:
+86-591-83767816

CCTV Lens

Mega pixel Fixed-focal Camera Lenses:Model: HW5018-MP50mm, F1.8, 2/3 type or 1/2 type, C-MountFocal Length: 50mmMax. Aperture Ratio: 1:1.8Operating Range Temperature: -20 ~ 40°CIris 1.8~CFocus 1.0 m~-Control: Iris ManualFocus: ManualAngle of View:D 2/3, 13.1°, 1/2, 9.5°H 10.5°, 7.6°V 7.9°, 5.7°Resolution (center and edge): >=100 line pairs/mmBack Focal Length 19mmMount C- MountFront Connect M42 x 0.75Wavelength Range 480~880 nmDimension: dia. 45.0 x 62mmMax. Image Format 8.8mm x 6.6mm (f 11mm)Mega pixel Fixed-focal Camera Lenses:Model: HW1018-MP10mm, F1.8, 2/3 type or 1/2 type, C-MountFocal Length: 10mmMax. Aperture Ratio: 1:1.8Operating Range Temperature: -20~40 CIris: 1.8~CFocus: 0.5 m~--Control Iris ManualFocus ManualAngle of View:D 2/3 59.0° 1/2 44.4°H 48.5° 36.0°V 37.0° 18.9°Resolution (center and edge): >=100 line pair/mmBack Focal Length 14mmMount C- MountFront Connect M28 x 0.5Wavelength Range 480~880 nmDimension: dia32.0 x 52mmMax. Image Format 8.8mm x 6.6mm (f 11mm)Broad Band Fixed-Focal Camera Lenses:Model: W5018/2-DC50mm, F1.8, 1/2 type, C-MountFocal Length: 50mmMax. Aperture Ratio: 1:1.8Operating Range Temperature: -10~40°CIris: 1.8~360Focus: 1.0 m~-Control: DC Auto Iris, Focus ManualAngle of ViewD 1/2" 9.5°H 7.6°V 5.7°Resolution (center and edge): >=80 line pair/mmBack Focal Length: 13mmMount: C- MountFront Connect: M40 x 1Wavelength Range: 480~880 nmDimension: dia44.0 x 68mmMax. Image Format: 6.4mm x 4.8mm (f 8mm)Pinhole Camera Lenses:Model PH6015/3-DCFocal Length 6mmMax. Aperture Ratio 1:1.5Operating Range Temperature -10~40°CIris 1.5~360Focus 0.2 m~-Control Iris DC Auto Iris, Focus ManualAngle of ViewD 53.0°H 42.5°Resolution (center and edge): >=80line pair/mmBack Focal Length 8mmMount CSEffective Lens Aperture: Front: f=3.9mm; Rear: f=10.7mmDimension: dia. 20.0 x 82mmMax. Image Format 4.8mm x 3.6mm (f 6mm)Pinhole Camera LensesModel PH2820/3Focal Length 2.8mmMax. Aperture Ratio 1:2.0Operating Range Temperature: -10~40°CIris 2.0~360Focus 0.2 m~Control Iris ManualFocus ManualAngle of View:D 100.0°H 80.0°Resolution (center and edge): >=80 line pair/mmBack Focal Length 9mmMount CSEffective Lens Aperture: Front: f=2.0mm; Rear: f=8.0mmDimension: dia. 23.0 x 91mmMax. Image Format 4.8mm x 3.6mm (f 6mm)

Add to Basket

Web address

Other goods of this manufacturer :

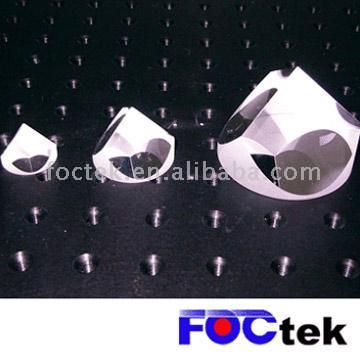

Corner Cube and Retro Reflector
	The corner cube prism actually represents a cube with one corner cut off so that there are three mutually orthogonal surfaces. The corner cube will reflect all light rays towards the source. As each f

Corner Cube and Retro Reflector
	Product Name: Corner Cube and Retro ReflectorModel Number: FCCPlace of Origin: ChinaHighly accurate (The corner cube prism actually represents a cube with one corner cut off so that there are three mu

Filter
	FOCtek produces and sells optical filters for applications of laser systems, opticalinstruments and BIOS measurement systems. The filter can be made of color glassor optical glass with coating.

Filter
	Product Name: FilterPlace of Origin: ChinaFOCtek produces and sells optical filters for applications of laser systems, opticalinstruments and BIOS measurement systems. The filter can be made of color

KTP
	KTP (KTiOPO4) is a nonlinear optical crystal, which possesses excellent nonlinear and electro-optic properties. It has large nonlinear optical coefficients, wide angular bandwidth and small walk-off a

KTP Crystal
	Product Name: KTP CrystalModel Number: KTPPlace of Origin: ChinaKTP (KTiOPO4) is a nonlinear optical crystal, which possesses excellent nonlinearand electro-optic properties. It has large nonlinear op

Laser Beamsplitter
	The polarization beamsplitters are used to split or combine two perpendicular polarization laser beams. However, the common beamsplitters are used to split or combine laser beams. The performance of b

Laser Beamsplitter
	Product Name: Laser BeamsplitterModel Number: BSC, BSPPlace of Origin: ChinaThe polarization beamsplitters are used to split or combine two perpendicular polarization laser beams. However, the common
