KTP Crystal
Product Name: KTP CrystalModel Number: KTPPlace of Origin: ChinaKTP (KTiOPO4) is a nonlinear optical crystal, which possesses excellent nonlinearand electro-optic properties. It has large nonlinear optical coefficients, wideangular bandwidth and small walk-off angle, which make it suitable for variousnonlinear frequency conversion and wave guide operations.Due to very high effective nonlinearity (d eff-8.3xd 36 (KDP) at 1.06μm) andexcellent optical properties, KTP is perfectly used as lasing material. The phasematching range of KTP crystal lies in 0.99-3.3μm region. This allows us to useKTP as an intra-cavity and extra-cavity frequency for such lasers as Nd:YAG,Nd:glass and Nd:YLF.Capabilities:1) Aperture: 1 x 1mm-10 x 10mm2) Length: 0.05-20mm3) Phase matching angle: determined by different harmonic generations; typical Θ=90°; φ=23.5° for SHG 1,064nm4) Phase matching type: type II5) Typical coating:a) AR at 1,064nm Rb) HR at 1,064nm, R>99.8%; HT at 808nm, TDifferent coating specifications are upon customer requests.Typical specifications and tolerance:1) Angle tolerance: ΔΘ2) Dimension tolerance: (W ±0.1mm) x (H ±0.1mm) x (L + 0.2mm/-0.1mm)3) Flatness:4) Scratch/dig code: better than 10/5 scratch/dig per MIL-O-13830A5) Parallelism:6) Perpendicularity:7) Wavefront distortion:8) Clear aperture: >90% central area
The polarization beamsplitters are used to split or combine two perpendicular polarization laser beams. However, the common beamsplitters are used to split or combine laser beams. The performance of b
Product Name: Laser BeamsplitterModel Number: BSC, BSPPlace of Origin: ChinaThe polarization beamsplitters are used to split or combine two perpendicular polarization laser beams. However, the common
We make lenses with diameter from 1.0mm to 300mm.Our standard lens has the following specifications:Material: grade A BK7, fused silica, sapphire, or CaF2Diameter tolerance: +0.0, -0.12mmParaxial foca
Product Name: LensModel Number: LensPlace of Origin: ChinaWe make lenses with diameter from 1.0mm to 300mm by optical glass or optical crystals, such as BK7, fused silica, sapphire, and CaF2.Our stand
Product Name: Micro OpticsPlace of Origin: ChinaFOCtek especially supply such micro optics as C-lenses, micro prisms, micro PBS,micro waveplates, Birefringent YVO4 and LN wedges for fiber optic usage

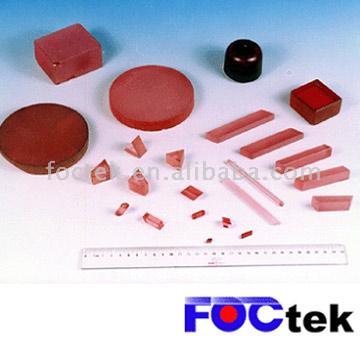

1) Nd dopant concentration: 0.5-1.2ATM%, tolerance within 10% of concentration2) Diameter: 3-14mm3) Length: 1-160mmTypical specifications and tolerance:1) Orientation:crystalline direction (+/-0.5°
Product Name: Nd:YAGPlace of Origin: China1) Nd dopant concentration: 0.5-1.2ATM%, tolerance within 10% of concentration2) Diameter: 3-14mm3) Length: 1-160mmTypical specifications and tolerance:1) Ori
