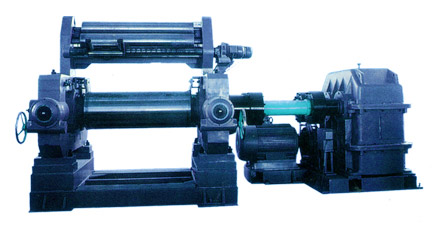

XK-550B Rubber Mixing Mill
|
|
Type: XK-550BWorking diameter of roll: 550mmWorking length of roll: 1,500mmWorking linear speed of front roll: 27.94m/minFriction ratio of front and rear roll: 1:1.22Capacity/batch: 50 - 60kgDriving m
|
| |
|
XK-560 Open Type Rubber Refining Machine
|
|
Type :XK-560Working diameter of roll:560mm/510mmWorking length of roll: 1530mmWorking linear speed of front roll: 27.72m/minFriction ratio of front and rear roll: 1:1.2Capacity/batch: 35~50kgDriving m
|
|
|
|
XLB 350 x 350 x 2 Plate Vulcanizing Press
|
|
Model: XLB 350 x 350 x 2Nominal mold clamping force: 0.55MNSpace between hot plates: 125mmWorking layer of hot plate: 2Unit area pressure of hot plate: 2.44MPaPlunger stroke: 250mmHeating mode: electr
|
| |
| |
|
|
|
XLB-D (Q) 750 x 850 Plate Vulcanizing Press
|
|
Model: XLB-D (Q) 750 x 850Nominal mold clamping force: 1,600MNPlunger stroke: 750 x 850mmSpace between hot plates: 125mmWorking layer of hot plate: 2Overall dimensions: 250mmMain motor power: 5.5kWOur
|
| |
|
YSN-20T/2-6 Inner Tube
|
|
1) Mold clamping force:20T2) Max diameter of curing mold: 295mm3) Working layers: 24) Time of opening an closing mold :≤4.5s5) Diameter of plate: 735mm6) Steam pressure : 0.6~0.8Mpa7) Inner pres
|
| |
|
25MT Inner Tube Vulcanizer
|
|
Pressure: 250KNMould opening angle: 45°Inner pressure of gasbag: 1.5MpaSteam working pressure: 0.7MpaElectric motor power: 3kWOverall dimensions (L x W x H): 1150 x 1040 x 1520mmWeight: 2MT
|
|
