XLB-D (Q) 750 x 850 Plate Vulcanizing Press
|
|
Model: XLB-D (Q) 750 x 850Nominal mold clamping force: 1,600MNPlunger stroke: 750 x 850mmSpace between hot plates: 125mmWorking layer of hot plate: 2Overall dimensions: 250mmMain motor power: 5.5kWOur
|
| |
|

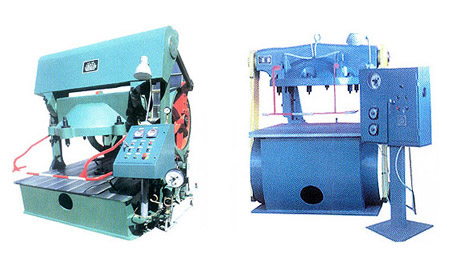

YSN-20T/2-6 Inner Tube
|
|
1) Mold clamping force:20T2) Max diameter of curing mold: 295mm3) Working layers: 24) Time of opening an closing mold :≤4.5s5) Diameter of plate: 735mm6) Steam pressure : 0.6~0.8Mpa7) Inner pres
|
| |
|
25MT Inner Tube Vulcanizer
|
|
Pressure: 250KNMould opening angle: 45°Inner pressure of gasbag: 1.5MpaSteam working pressure: 0.7MpaElectric motor power: 3kWOverall dimensions (L x W x H): 1150 x 1040 x 1520mmWeight: 2MT
|
|
|
|
Extruder
|
|
The machine is of hot feeding and single screw extruding, with adjustable speed. Changing the head of the machine can obtain various extruding, semi-finished products and forming sheets and filter rub
|
| |
| |
|
|
| |
|

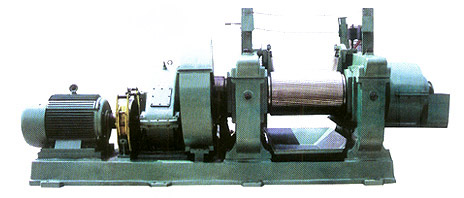

Rubber Mixing Mill
|
|
|
The mixer is mainly applicable for both natural and synthetic rubber processing: thermal mixing or batches and finish squashing.Also it can be used for plastic industry and pigment industry as subsidi
|
| |
|
Single Knife Hydraulic Rubber Cutter
|
|
Width of rubber cutter: 660mmStroke of rubber cutter: 680mmGross pressure of oil cylinder: 80KNRubber-cutting stroke time: 14 - 16sMotor power: 5.5kWOverall dimensions (L x W x H): 2,000 x 1,300 x 2,5
|
|
