Description |
 |
|
|
|
|
|
|
|
|
|

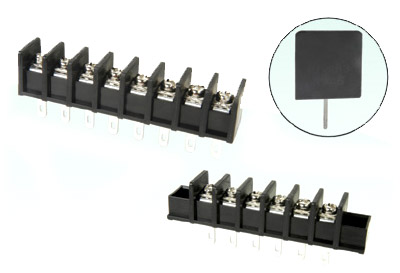

Terminal
MaterialHousing: PA66, UL94V-0Terminal: 1.0T, tin-platedScrew: steel, M4 Ni-platedRated: 300V/25ATemperature range: -40°C~+105°CWithstanding voltage: AC 2,000V/minInsulation resistance: 500mΩ/DC 500VWire range: 22-14 AWGMax. torque value: 18kg/cm
 Add to Basket
 Web address
|
|
|
Other goods of this manufacturer : |
|
|
|
|
Terminal
|
|
Housing: PA66, UL94V-0Terminal:0.8T tin platedScrew: steel, M4 Ni platedRated :300V/20AInsulation resistance: 500mΩ/DC 500VWithstand voltage: AC 2,000V/minTemperature range: -40°C~+105°
|
| |
|
Terminal
|
|
Rated voltage/current: 150V/2AWire range: 26-20AWG, 1.02Withstanding voltage: AC 2,000V per minInsulation resistance: 5,000mΩ/1,000VContact resistance: 20mΩTemperature range: -40°C~+10
|
| |
|
Terminal
|
|
Rated voltage/current: 300V/8AWire range: 28-16 AWG 1.5mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,000VContact resistance: 20mΩTemp. range: -40°C~+105&de
|
|
|
|
Terminal
|
|
Rated voltage/current: 300V/10AWire range: 24-12 AWG 2.5mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,000VContact resistance: 20mΩTemp. range: -40°C~+105&d
|
| |
|
Terminal
|
|
Rated voltage/current: 300V/8AWire range: 24-18 AWG 1.0mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,000VContact resistance: 20mΩTemp. range: -40°C~+105&de
|
| |
|
Terminal
|
|
Rated voltage/current: 300V/10AWire range: 26-14 AWG 1.5mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,000VContact resistance: 20mΩTemp. range: -40°C~+105&d
|
|
|
|
Terminal
|
|
MaterialHousing: PA66, UL94V-0Terminal: 1.0T, tin-platedScrew: steel, M4 Ni-platedRated: 300V/25ATemperature range: -40°C~+105°CWithstanding voltage: AC 2,000V/minInsulation resistance: 500m&O
|
| |
|
Terminal
|
|
|
Product Name: TerminalModel Number: 2ERJKPlace of Origin: ChinaRated voltage/current: 300V/8AWire range: 28-16 AWG 1.5mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,00
|
| |
|
Terminal
|
|
|
Product Name: TerminalModel Number: RJ103Place of Origin: ChinaRated voltage/current: 300V/10AWire range: 24-12 AWG 2.5mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,0
|
|
|
|
