Description |
 |
|
|
|
|
|
|
|
|
|

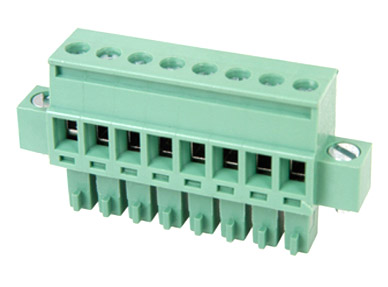

Terminal
Product Name: TerminalModel Number: 2ERJKPlace of Origin: ChinaRated voltage/current: 300V/8AWire range: 28-16 AWG 1.5mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,000VContact resistance: 20mΩTemp. range: -40°C~+105°CMax. soldering: +250°C for 5secTorque: 0.2N.m (1.7lb.in)Strip length: 6-7mmMaterial:Housing: PA66, UL94V-0Screws: M2, steel, zinc platedWire guard: phosphor bronze, Ni platedContact: brass, Ni plated
 Add to Basket
 Web address
|
|
|
Other goods of this manufacturer : |
|
|
|
|
Terminal
|
|
Product Name: TerminalModel Number: RJ103Place of Origin: ChinaRated voltage/current: 300V/10AWire range: 24-12 AWG 2.5mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,0
|
| |
|
Terminal
|
|
Product Name: TerminalModel Number: 2ERJKAMPlace of Origin: ChinaRated voltage/current: 300V/8AWire range: 28-16 AWG 1.5mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,
|
| |
|
Terminal
|
|
Product Name: TerminalModel Number: RJ28CPlace of Origin: ChinaMaterialHousing: PA66, UL94V-0Terminal: 1.0T, tin-platedScrew: steel, M4 Ni-platedRated: 300V/25ATemperature range: -40°C~+105°
|
|
|
|
Terminal
|
|
Product Name: TerminalModel Number: 2ERJKAPlace of Origin: ChineseRated voltage/current: 300V/8AWire range: 28-16 AWG 1.5mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1
|
| |
|
Terminal
|
|
Product Name: TerminalModel Number: RJ25HPlace of Origin: ChinaMaterialHousing: PA66, UL94V-0Terminal: 1.0T, tin-platedScrew: steel, M4 Ni-platedRated: 300V/25ATemperature range: -40°C~+105°
|
| |
|
Terminal
|
|
Product Name: TerminalModel Number: RJ8500Place of Origin: ChinaHousing: PA66, UL94V-0Terminal: 0.8T tin platedScrew: steel, M4 Ni platedRated: 300V/20AInsulation resistance: 500mΩ/DC 500VWithsta
|
|
|
|
Terminal
|
|
Product Name: TerminalModel Number: RJ350Place of Origin: ChinaRated voltage/current: 300V/8AWire range: 24-18 AWG 1.0mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,00
|
| |
|
Terminal
|
|
Product Name: TerminalModel Number: RJ126Place of Origin: ChinaRated voltage/current: 300V/10AWire range: 26-14 AWG 1.5mm2Withstand voltage: AC 2,000V per minuteInsulation resistance: 5,000mΩ/1,0
|
| |
|
Terminal
|
|
Product Name: TerminalModel Number: RJ141RPlace of Origin: ChinaRated voltage/current: 150V/2AWire range: 26-20AWG, 1.02Withstanding voltage: AC 2,000V per minInsulation resistance: 5,000mΩ/1,000
|
|
|
|
