Reverse Polarity Connectors - RP TNC
|
|
These connectors reverse polarity. We can produce them to any specification you require in terms of materials, connector ends and standards. Their electronic performance parameters, materials, coating
|
| |
|
SMB RF Coaxial Connectors
|
|
Product Name: SMB RF Coaxial ConnectorsPlace of Origin: ChinaSpecifications:1) Temperature range: -65 - +165°C (PE cable: -40 - 85°C)2) Impedance: 50Ω, 75Ω3) Frequency range: DC -
|
| |
|
SMB RF Coaxial Connectors
|
|
|
Specifications:1) Temperature range: -65 - +165°C (PE cable: -40 - 85°C)2) Impedance: 50Ω, 75Ω3) Frequency range: DC - 4 GHz (50Ω), 0 - 2GHz (75Ω)4) Working voltage: 33
|
|
|
|

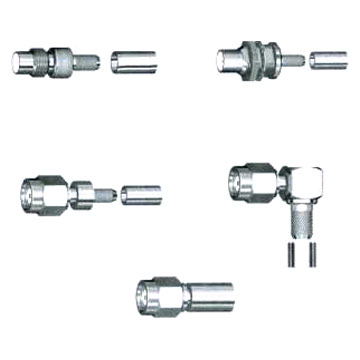

SMC RF Coaxial Connectors
|
|
Product Name: SMC RF Coaxial ConnectorsPlace of Origin: ChinaSpecifications:1) Temperature range: -65 - +165°C (PE cable: -40 - 85°C)2) Impedance: 50Ω3) Frequency range: DC - 10 GHz4) Wo
|
| |
|
SMC RF Coaxial Connectors
|
|
|
Specifications:1) Temperature range: -65 - +165°C (PE cable: -40 - 85°C)2) Impedance: 50Ω3) Frequency range: DC - 10 GHz4) Working voltage: 335V max5) Withstand voltage: 1,000V rms6) Con
|
| |
|
SSMA RF Coaxial Connectors
|
|
Product Name: SSMA RF Coaxial ConnectorsPlace of Origin: ChinaSpecifications:1) Temperature range: -55 - +155°C2) Vibration: 98m/s² (10 - 500Hz)3) Impedance: 50Ω4) Frequency range: DC -
|
|
|
|
SSMA RF Coaxial Connectors
|
|
|
Specifications:1) Temperature range: -55 - +155°C2) Vibration: 98m/s² (10 - 500Hz)3) Impedance: 50Ω4) Frequency range: DC -35GHz5) Working voltage: 250V max6) Withstand voltage: 750V rm
|
| |
|

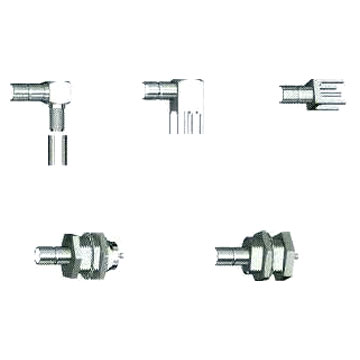

SSMB RF Coaxial Connectors
|
|
Product Name: SSMB RF Coaxial ConnectorsPlace of Origin: ChinaSpecifications:1) Temperature range: -55 - +155°C2) Impedance: 50Ω3) Frequency range: DC -3GHz4) Working voltage: 250V max5) Wit
|
| |
|
SSMB RF Coaxial Connectors
|
|
|
Specifications:1) Temperature range: -55 - +155°C2) Impedance: 50Ω3) Frequency range: DC -3GHz4) Working voltage: 250V max5) Withstand voltage: 500V rms6) Contact resistance:a) Center contac
|
|
