SSMB RF Coaxial Connectors (SSMB РФ Коаксиальные соединители)

Zoom in

Producer information

Company:
Yangzhou Jingcheng Electronics Co., Ltd.

Address:
Bali Town Industrial Park, Yangzhou, Jiangsu, China (Mainland) Zip: 518049

Phone:
+86-755-83200266~805

SSMB RF Coaxial Connectors

Specifications:1) Temperature range: -55 - +155°C2) Impedance: 50Ω3) Frequency range: DC -3GHz4) Working voltage: 250V max5) Withstand voltage: 500V rms6) Contact resistance:a) Center contact: ≤5mΩb) Outer contact: ≤2.5mΩ7) Insulation resistance: ≥1,000mΩ8) VSWR:a) Straight: DC - 1GHz ≤1.2, 1 - 3GHz ≤1.35b) Right angle: DC - 1GHz ≤ 1.20, 1 - 3GHz ≤ 1.359) Durability (mating): ≥500 timesApplicable Standards:1) MIL-C-390122) CECC 221703) IEC 60169-19

Add to Basket

Web address

Other goods of this manufacturer :

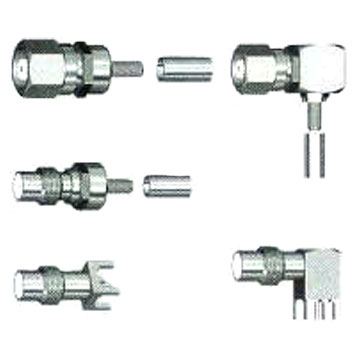

SSMC RF Coaxial Connectors
	Specifications:1) Temperature range: -55 - +155°C2) Vibration: 98m/s² (10 - 500Hz)3) Impedance: 50Ω4) Frequency range: DC -6GHz5) Working voltage: 250V max6) Withstand voltage: 500V rms

SSMC RF Coaxial Connectors
	Product Name: SSMC RF Coaxial ConnectorsPlace of Origin: ChinaSpecifications:1) Temperature range: -55 - +155°C2) Vibration: 98m/s² (10 - 500Hz)3) Impedance: 50Ω4) Frequency range: DC -

TAC RF Coaxial Connectors
	Product Name: TAC RF Coaxial ConnectorsPlace of Origin: ChinaSpecifications:1) Temperature range: -25 - +70°C2) Vibration: 100m/s² (10 - 500Hz)3) Impedance: 75Ω4) Frequency range: DC -1

TAC RF Coaxial Connectors
	Specifications:1) Temperature range: -25 - +70°C2) Vibration: 100m/s² (10 - 500Hz)3) Impedance: 75Ω4) Frequency range: DC -1GHz5) Working voltage: 335V max6) Withstand voltage: 750V rms

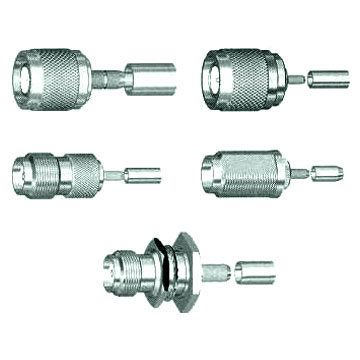

TNC RF Coaxial Connectors
	Specifications:1) Temperature range: -65 - +165°C (PE cable -40 - +85°C)2) Vibration: MIL-STD-202, Method 2133) Impedance: 50Ω4) Frequency range: DC -11GHz5) Working voltage: 500V max6)

TNC RF Coaxial Connectors
	Product Name: TNC RF Coaxial ConnectorsPlace of Origin: ChinaSpecifications:1) Temperature range: -65 - +165°C (PE cable -40 - +85°C)2) Vibration: MIL-STD-202, Method 2133) Impedance: 50&Omega

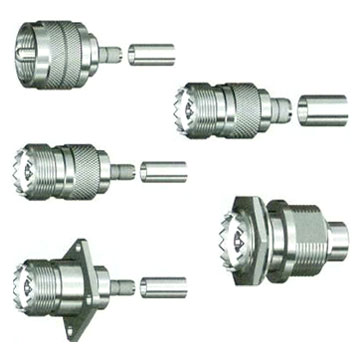

UHF RF Coaxial Connectors
	Product Name: UHF RF Coaxial ConnectorsPlace of Origin: ChinaSpecifications:1) Temperature range: -40 - +85°C2) Impedance: non-constant3) Frequency range: DC -300MHz4) Working voltage: 750V max5)

UHF RF Coaxial Connectors
	Specifications:1) Temperature range: -40 - +85°C2) Impedance: non-constant3) Frequency range: DC -300MHz4) Working voltage: 750V max5) Withstand voltage: 2,000V rms6) Contact resistance:a) Center

RF Coaxial Connectors
	As a major enterprise of RF products in china, our company manufactures a full rangeof products, including:1) MMCX RF coaxial connectors2) MCX RF coaxial connectors3) SMA RF coaxial connectors4) SMB R
