Description
Producer information
Company:Baoguang Group Co., Ltd.
Address:Taishang Industrial Zone, Huanghua Town, Yueqing, Zhejiang, China (Mainland) Zip: 325605
Phone:+86-577-61723375
Ceramic Vacuum Interrupter Product Name: Ceramic Vacuum InterrupterModel Number: BGE508, BGE512Place of Origin: ChinaMain technique parameters:1) Rated voltage: 1.14kV2) Rated current: 630A3) Rated frequency: 50Hz4) Rated put through current: 6,000 / 6,300A5) Rated breaking current: 4,800 / 5,040A6) Limiting breaking current: 6,000 / 6,300A7) Rated short-time withstand current: 4,800 /5,040A8) Mechanical life: 1,000,000 times9) Rated breaking time:a) AC3 type: 150,000 timesb) AC4 type: 6,000 times10) Contact automatic blocking ability: 60±20N, 70±20N11) Force required holding contacts open at full stroke: 90±20N12) The resistance under contact automatic blocking ability loop:≤100µΩ and ≤60µΩ13) Contact-wear allowance thickness: 2mm14) Storage period: 20 yearsTechnical specifications of the contactor:1) Clearance between open contacts: 2±0.2mm2) Contact travel: 1±0.2mm3) Average closing speed: 0.6±0.2m/s4) Average opening speed: 0.3±0.1m/s5) Rated contact pressure: 100±20N6) Contact closing bounce time: ≤2ms7) Contact opening non-synchrony: ≤2ms8) Contact closing non-synchrony:≤1ms Add to Basket
Web address
Other goods of this manufacturer :
Ceramic Vacuum Interrupter
Product Name: Ceramic Vacuum InterrupterModel Number: BGE510Place of Origin: ChinaMain technique parameters:1) Rated voltage: 7.2kV2) Rated current: 630A3) Rated frequency: 50Hz4) Rated put through cu
Ceramic Vacuum Interrupter
Product Name: Ceramic Vacuum InterrupterModel Number: BGE613Place of Origin: ChinaMain technique parameters:1) Rated voltage: 12kV2) Rated current: 1,250A3) Rated short-circuit breaking current: 20/25
Current Transformer
LA-10 is 1-sealed structure with castingresin insulation and full-sealed indoor installation product. Castingresin insulation can be used to measure current and electronic energy, and relay protection
Current Transformer
Product Name: Current TransformerPlace of Origin: ChinaLA-10 is 1-sealed structure with castingresin insulation and full-sealed indoor installation product. Castingresin insulation can be used to meas
Fuse
Specifications:1) Rated voltage: 10 - 36kV2) Rated current: 100A / 200A3) Breaking current: 8, 000 / 12, 000A4) Breaking voltage: 110 - 170kV5) Power frequency withstand voltage: 65 - 90kV6) Leakage d
Fuse
Specifications:1) Rated voltage: 10 - 36kV2) Rated current: 100A / 200A3) Breaking current: 8, 000 / 12, 000A4) Breaking voltage: 110 - 170kV5) Power frequency withstand voltage: 65 - 90kV6) Leakage d

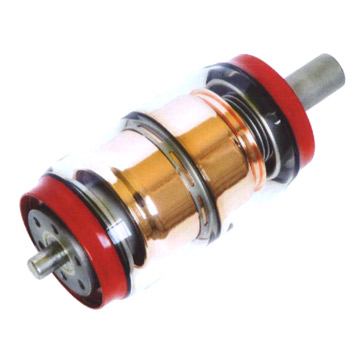

Glass Vacuum Interrupter
