Description
Producer information
Company:Baoguang Group Co., Ltd.
Address:Taishang Industrial Zone, Huanghua Town, Yueqing, Zhejiang, China (Mainland) Zip: 325605
Phone:+86-577-61723375
Glass Vacuum Interrupter Main technique parameters:1) Rated voltage: 12kV2) Rated current: 1,250/1,600A3) Rated short-circuit breaking current: 31.5kA4) Rated short-circuit making current: 80kA5) Rated peak withstand current: 80kA6) Rated short-time withstand current: 31.5kA7) 1min rated power frequency withstand voltage: 42kV8) The resistance under contact automatic blocking ability loop:≤30µΩ9) Rated short-circuit breaking current breaking times: 30 times10) Rated lightning impulse withstand voltage: 75kV11) Mechanical life: 10,000 times12) Contact automatic blocking ability: 120±50N13) Force required holding contacts open at full stroke: 200±50N14) Contact-wear allowance thickness: 3mm15) Storage period: 20 yearsTechnical specifications of the contactor1) Clearance between open contacts: 11±1mm2) Contact travel: 3.5±0.5mm3) Average closing speed: 0.6±0.2m/s4) Average opening speed: 1.1±0.2m/s5) Rated contact pressure: 3,100±200N6) Contact closing bounce time: ≤2ms7) Contact opening/closing non-synchrony: ≤2ms Add to Basket
Web address
Other goods of this manufacturer :
Glass Vacuum Interrupter
Main technique parameters:1) Rated voltage: 12kV2) Rated current: 2,000A3) Rated short-circuit breaking current: 31.5/40kA4) Rated short-circuit making current: 80/100kA5) Rated peak withstand current
Glass Vacuum Interrupter
Main technique parameters:1) Rated voltage: 12kV2) Rated current: 630A3) Rated short-circuit breaking current: 12.5/16kA4) Rated short-circuit making current: 40kA5) Rated peak withstand current: 40kA
Glass Vacuum Interrupter
Product Name: Glass Vacuum InterrupterModel Number: BGE607APlace of Origin: ChinaMain technique parameters:1) Rated voltage: 12kV2) Rated current: 2,000A3) Rated short-circuit breaking current: 31.5/4
Glass Vacuum Interrupter
Product Name: Glass Vacuum InterrupterModel Number: BGE611, BGE603Place of Origin: ChinaMain technique parameters:1) Rated voltage: 12kV2) Rated current: 630A3) Rated short-circuit breaking current: 1
Glass Vacuum Interrupter
Product Name: Glass Vacuum InterrupterModel Number: BGE608Place of Origin: ChinaMain technique parameters:1) Rated voltage: 12kV2) Rated current: 3,150A3) Rated short-circuit breaking current: 40kA4)
High Voltage Fuse
Specifications:1) XRNT high voltage limited fuse for protecting voltage regulators2) Rated voltage: 12kV AC (24kV AC)3) Rated current: 125A4) Standard: IEC 282.15) Rated breaking capacity: 50kA
High Voltage Fuse
Specifications:1) XRNT high voltage limited fuse for protecting voltage regulators2) Rated voltage: 12kV AC (24kV AC)3) Rated current: 125A4) Standard: IEC 282.15) Rated breaking capacity: 50kA
Lightning Arrester
Main technique parameters:1) The arrester`s rated voltage (virtual value): 12.7, 16.5, 17kV2) The system`s nominal voltage (virtual value): 10kV3) The constant operation voltage (virtual value): 6.6,

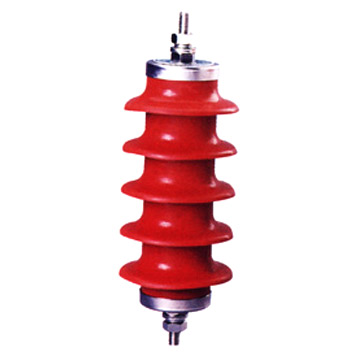

Lightning Arrester
Product Name: Lightning ArresterPlace of Origin: ChinaMain technique parameters:1) The arrester`s rated voltage (virtual value): 12.7, 16.5, 17kV2) The system`s nominal voltage (virtual value): 10kV3)
