Glass Vacuum Interrupter (Стекло Вакуумный прерыватель)

Zoom in

Producer information

Company:
Baoguang Group Co., Ltd.

Address:
Taishang Industrial Zone, Huanghua Town, Yueqing, Zhejiang, China (Mainland) Zip: 325605

Phone:
+86-577-61723375

Glass Vacuum Interrupter

Product Name: Glass Vacuum InterrupterModel Number: BGE608Place of Origin: ChinaMain technique parameters:1) Rated voltage: 12kV2) Rated current: 3,150A3) Rated short-circuit breaking current: 40kA4) Rated short-circuit making current: 100kA5) Rated peak withstand current: 100kA6) Rated short-time withstand current: 40kA7) 1min rated power frequency withstand voltage: 42kV8) The resistance under contact automatic blocking ability loop: ≤20µΩ9) Rated short-circuit breaking current breaking times: 30 times10) Rated lightning impulse withstand voltage: 75kV11) Mechanical life: 10,000 times12) Contact automatic blocking ability: 200±60N13) Force required to hold contacts open at full stroke: 300±60N14) Contact-wear allowance thickness: 3mm15) Storage period: 20 yearsTechnical specifications of the contactor:1) Clearance between open contacts: 11±1mm2) Contact travel: 3.5±0.5mm3) Average closing speed: 0.6±0.2m/s4) Average opening speed: 1.1±0.2m/s5) Rated contact pressure: 4,500±300N6) Contact closing bounce time: ≤2ms7) Contact opening/closing non-synchrony: ≤2ms

Add to Basket

Web address

Other goods of this manufacturer :

High Voltage Fuse
	Specifications:1) XRNT high voltage limited fuse for protecting voltage regulators2) Rated voltage: 12kV AC (24kV AC)3) Rated current: 125A4) Standard: IEC 282.15) Rated breaking capacity: 50kA

High Voltage Fuse
	Specifications:1) XRNT high voltage limited fuse for protecting voltage regulators2) Rated voltage: 12kV AC (24kV AC)3) Rated current: 125A4) Standard: IEC 282.15) Rated breaking capacity: 50kA

Lightning Arrester
	Main technique parameters:1) The arrester`s rated voltage (virtual value): 12.7, 16.5, 17kV2) The system`s nominal voltage (virtual value): 10kV3) The constant operation voltage (virtual value): 6.6,

Lightning Arrester
	Product Name: Lightning ArresterPlace of Origin: ChinaMain technique parameters:1) The arrester`s rated voltage (virtual value): 12.7, 16.5, 17kV2) The system`s nominal voltage (virtual value): 10kV3)

Microprocessor-Based Protection Monitoring System
	Product Name: Microprocessor-Based Protection Monitoring SystemModel Number: DMP-100EPlace of Origin: ChinaDMP100E series microprocessor-based protection monitoring device is a simplificationof DMP100

Nylon Cable Ties
	Product Name: Nylon Cable TiesPlace of Origin: ChinaOperating temperature: -40 to 150Color: Natural, black, red, yellow, blue, green and other colors are available as requested.

Self-Adhesive Tie Mounts
	Product Name: Self-Adhesive Tie MountsPlace of Origin: ChinaUsage: peel the sponge glue and stick on the wall then, bundle the wire with cable ties. Application: for bundling wires and other things sa

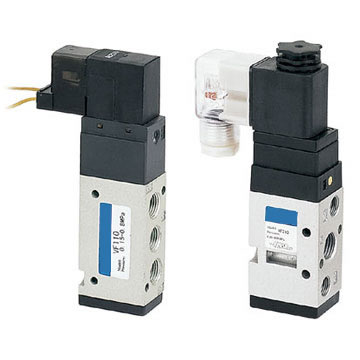

Solenoid Valve, Control Valve
	Features:1) Position number: two positions five ways2) Working medium: 40 microns filtered air3) Ambient temperature: -5~50°C4) Working pressure: 0.15-0.8MPa5) Voltage: DC 24V/DC12V or AC 24V/110

Solenoid Valve, Control Valve
	Product Name: Solenoid Valve, Control ValveModel Number: VFPlace of Origin: ChinaFeatures:1) Position number: two positions five ways2) Working medium: 40 microns filtered air3) Ambient temperature: -
