Description |
 |
|
|
|
|
|
|
|
Producer information
Company:
Baoguang Group Co., Ltd. |
| |
Address:
Taishang Industrial Zone, Huanghua Town, Yueqing, Zhejiang, China (Mainland) Zip: 325605 |
| |
Phone:
+86-577-61723375 |
|

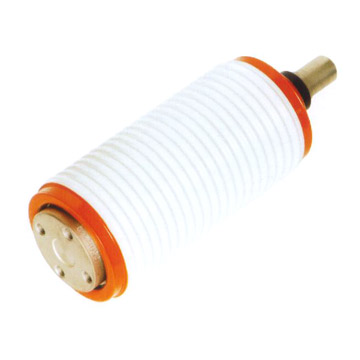

Ceramic Vacuum Interrupter
Main technique parameters:1) Rated voltage: 40.5kV2) Rated current: 1,600A3) Rated short-circuit breaking current: 25kA4) Rated short-circuit making current: 63kA5) Rated peak withstand current: 63kA6) Rated short-time withstand current: 25kA7) 1min rated power frequency withstand voltage: 95kV8) The resistance under contact automatic blocking ability loop:≤25µΩ9) Rated short-circuit breaking current breaking times: 30 times10) Rated lightning impulse withstand voltage: 185kV11) Mechanical life: 10,000 times12) Contact automatic blocking ability: 200±50N13) Force required holding contacts open at full stroke: 300±50N14) Contact-wear allowance thickness: 3mm15) Storage period: 20 yearsTechnical specifications of the contactor:1) Clearance between open contacts: 24±1mm, 22±1mm2) Contact travel: 5±1mm, 8±1mm3) Average closing speed: 0.6±0.2m/s4) Average opening speed: 0.4±0.2m/s, 1.4±0.25) Rated contact pressure: 2,800±200N6) Contact closing bounce time: ≤5ms7) Contact opening/closing non-synchrony: ≤2ms
 Add to Basket
 Web address
|
|
|
Other goods of this manufacturer : |
|
|
|
|
Ceramic Vacuum Interrupter
|
|
Main technique parameters:1) Rated voltage: 12kV2) Rated current: 1,250A3) Rated short-circuit breaking current: 20/25kA4) Rated short-circuit making current: 50/63kA5) Rated peak withstand current: 5
|
| |
|
Ceramic Vacuum Interrupter
|
|
Main technique parameters:1) Rated voltage: 7.2kV2) Rated current: 630A3) Rated frequency: 50Hz4) Rated put through current: 6,300A5) Rated breaking current: 5,040A6) Limiting breaking current: 6,300A
|
| |
|
Ceramic Vacuum Interrupter
|
|
Main technique parameters:1) Rated voltage: 12kV2) Rated current: 2,500A3) Rated short-circuit breaking current: 40kA4) Rated short-circuit making current: 100kA5) Rated peak withstand current: 100kA6
|
|
|
|
Ceramic Vacuum Interrupter
|
|
Product Name: Ceramic Vacuum InterrupterModel Number: BGE506, BGE516Place of Origin: ChinaMain technique parameters:1) Rated voltage: 1.14kV2) Rated current: 250A3) Rated put through current: 2,500A4)
|
| |
|
Ceramic Vacuum Interrupter
|
|
Product Name: Ceramic Vacuum InterrupterModel Number: BGE630, BGE632Place of Origin: ChinaMain technique parameters:1) Rated voltage: 40.5kV2) Rated current: 1,600A3) Rated short-circuit breaking curr
|
| |
|
Ceramic Vacuum Interrupter
|
|
|
Product Name: Ceramic Vacuum InterrupterModel Number: BGE617Place of Origin: ChinaMain technique parameters:1) Rated voltage: 12kV2) Rated current: 2,500A3) Rated short-circuit breaking current: 40kA4
|
|
|
|
Ceramic Vacuum Interrupter
|
|
Product Name: Ceramic Vacuum InterrupterModel Number: BGE505, BGE507Place of Origin: ChinaMain technique parameters:1) Rated voltage: 1.14kV2) Rated current: 125/400A3) Rated frequency: 50Hz4) Rated p
|
| |
|
Ceramic Vacuum Interrupter
|
|
Product Name: Ceramic Vacuum InterrupterModel Number: BGE508, BGE512Place of Origin: ChinaMain technique parameters:1) Rated voltage: 1.14kV2) Rated current: 630A3) Rated frequency: 50Hz4) Rated put t
|
| |
|
Ceramic Vacuum Interrupter
|
|
|
Product Name: Ceramic Vacuum InterrupterModel Number: BGE510Place of Origin: ChinaMain technique parameters:1) Rated voltage: 7.2kV2) Rated current: 630A3) Rated frequency: 50Hz4) Rated put through cu
|
|
|
|
