High-Voltage Fuse Cutout (Высоковольтный плавкий предохранитель)

Zoom in

Producer information

Company:
Zhejiang Zhongyi Electric Power Technology Co., Ltd.

Address:
Lutoushi Village,Xiangyang Town, Yueqing, Zhejiang, China (Mainland) Zip: 325619

Phone:
+86-577-62602220

High-Voltage Fuse Cutout

Product features:1) Combine with HUBELL`s fuses link and provide transformers, capacitors, cables and circuits with complete fault protection2) Adapt the principle of arching with gases expelled gradually at both ends, design specially pressure release cap (vent), apply button head type link and sheaths fuse with assistant arcing tube3) Apply solid cast copper material to ensure the reliability of on/off, apply the new materials for fuse and inorganic materials for arching4) Maintenance free, ultraviolet radiation resistantTechnical ParameterType: HRW10-10F1) Rated voltage: 12KV2) Rated current: 100A3) Breaking current: 6.3KA4) Impulse voltage: 70KV5) Power-frequency withstand voltage: 42KV6) Leakage distance: 230mmType: HRW11-10/1001) Rated voltage: 12KV2) Rated current: 100A3) Breaking current: 6.3KA4) Impulse voltage: 70KV5) Power-frequency withstand voltage: 42KV6) Leakage distance: 330mmType: HRW5-35KV/2001) Rated voltage: 35KV2) Rated current: 200A3) Breaking current: 12.5KA4) Impulse voltage: 185KV5) Power-frequency withstand voltage: 105KV6) Leakage distance: 946mm

Add to Basket

Web address

Other goods of this manufacturer :

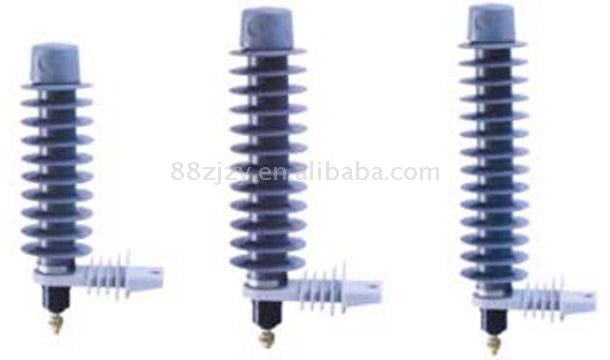

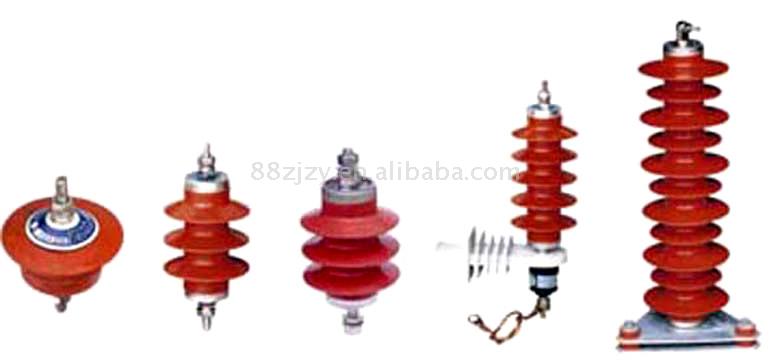

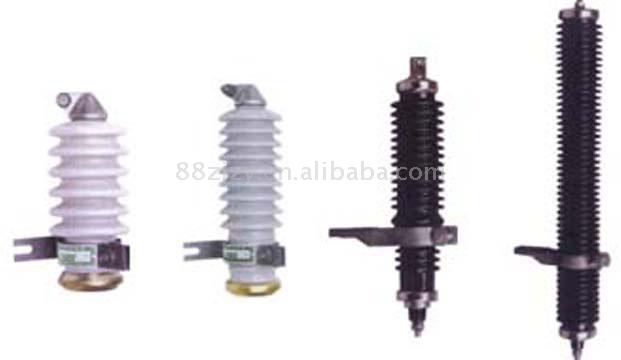

Lightning Arrester
	Main technique parameters:Type: YH1.5W-0.28/1.31) The arrester`s rated voltage (virtual value): 0.28kV2) The constant operation voltage (virtual value): 0.24KV3) The DC reference voltage (Ulm A) no le

Lightning Arrester
	Main technique parameters:Type: Y5WS-10/301)The arrester`s rated voltage (virtual value): 10KV2) The constant operation voltage (virtual value): 8.0KV3) The biggest remain voltage (climax value):a) Un

Lightning Arrester
	Main technique parameters:Type: YH5W-21L,YH5W-24L, YH10W-21L, YH10W-24L1) The arrester`s rated voltage (virtual value): 21KV, 24KV, 21KV, 24KV2) The constant operation voltage (virtual value): 17.0KV,

Link Fitting & Strain Clamp
	Aluminum-alloy Dead End ClampType: NXJ-1, NXJ-2, NXJ-3, NXJ-4Wire range: JKLYJ-35, JKLYJ-50, JKLYJ-70, JKLYJ-95Ultimate strength: 5.8KN, 12.0KNBall EyeType: QP-7, QP-10, QP-16, QP-20, QP-30Wire range:

Link Fitting & Strain Clamp
	Aluminum-alloy Dead End ClampType: NXJ-1, NXJ-2, NXJ-3, NXJ-4Wire range: JKLYJ-35, JKLYJ-50, JKLYJ-70, JKLYJ-95Ultimate strength: 5.8KN, 12.0KNBall EyeType: QP-7, QP-10, QP-16, QP-20, QP-30Wire range:

Outdoor High-Voltage Isolating Switch
	Use conditions:1) The altitude above sea level does not surpass 3,000m2) Surrounding air temperature:a) Upper limit: +40°Cb) Lower limit general area: -30°Cc) High and cold area: -40°C3

Outdoor High-Voltage Isolating Switch
	Use conditions:1) The altitude above sea level does not surpass 3,000m2) Surrounding air temperature:a) Upper limit: +40°Cb) Lower limit general area: -30°Cc) High and cold area: -40°C3

Outdoor Vacuum Circuit Breaker
	Product Name: Outdoor Vacuum Circuit BreakerModel Number: ZW32-12Place of Origin: ChinaFeatures:1) ZW32-12 series pillar type outdoor vacuum breaker is a kind of outdoor high voltageswitch equipment w

Outdoor Vacuum Circuit Breaker
	Features:1) ZW8-12, ZW8-12G series high-voltage vacuum circuit breaker is a kind of outdoor high-voltage switch equipment with 50Hz three-phase alternating current and 12kV rated voltage2) It is mainl
