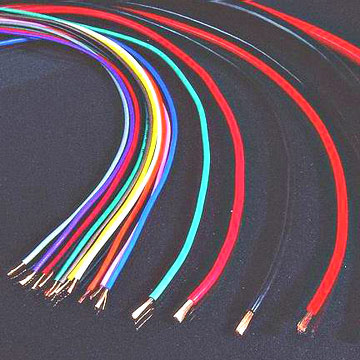

Hook-Up Wire (UL1007, UL1061, UL1015)
Features and specifications:1) Rated temperature:a) UL1007: 80°Cb) UL1061: 80°Cc) UL1015: 105°C2) Rated voltage:a) UL1007: 300Vb) UL1061: 300Vc) UL1015: 600V3) Reference standards: UL Subject 758, UL 1581, CSA C22.2 No. 210.24) UL1007: tinned or bare, stranded or solid copper conductor: 32-16 AWG5) UL1061: tinned or bare, stranded or solid copper conductor: 32-16 AWG6) UL1015: tinned or bare, stranded or solid copper conductor: 30-3/0 AWG7) Insulation:a) UL1007: color-coded lead freed PVC insulationb) UL1061: color-coded lead freed SR-PVC insulationc) UL1015: Color-coded lead freed PVC insulation8) Uniform insulation thickness to ensure easy stripping and cutting9) Passes UL VW-1 and CSA FT1 vertical flame tests10) Applications:a) UL 1007: for internal wiring of electronic and electric equipmentb) UL 1061: for internal wiring of electronic and electric equipment,protection is required where mechanical damage is possiblec) UL 1015: for internal wiring of electronic and electric equipment
Features:1) Rated temperature:a) UL2725: 60 or 80°Cb) UL2835: 60°C2) Rated voltage: 30V3) Reference standards: UL Subject 758, UL 1581, CSA C22.2 No.210.24) Stranded tinned or bare copper co
Features and specifications:1) Rated temperature:a) UL1185: 80°Cb) UL1533: 80°C2) Rated voltage:a) UL1185: 300Vb) UL1533: not specified3) Reference standards: UL Subject 758, UL 1581, CSA C2
Product Name: Automotive Wire (DIN 72551)Model Number: 28Place of Origin: ChinaFeatures:1) Reference standard: DIN 72551/19962) Resistant to heat, oil, abrasion and aging3) Excellent mechanical flexib
