Category 6 Modular Plug (Категория 6 Разъем)

Zoom in

Send Request

about this service

Producer information

Company:
Ningbo Excellence Communicated Connector Co., Ltd.

Address:
No. 651��Hengshan West Road, BeiLun, Ningbo, Zhejiang, China (Mainland) Zip: 315800

Phone:
+86-574-86868738

Category 6 Modular Plug

Product Name: Category 6 Modular PlugModel Number: C6R5Z50V0IPlace of Origin: ChinaSpecifications:Electrical:1) UL applications: 250V AC, 2A (max.)2) Dielectric withstanding voltage: 500V AC3) Insulation resistance: 35M Ohm (max.), after environmental testingMechanical:1) Cable-to-plug tensile strength: 20lbs (89N) (min.)2) Durability: 750 matching cycles3) Temperature range: -40 ~ 60oCMaterial and finish:1) Housing: polycarbonate (PC) UL94-V-0 or UL94-V-22) Contact blade: phosphor bronze3) Gold plating: 50u" over nickelInner packing: 1,000pcs/bagOuter packing:10 bags/export cartonN.W.: 15.5kgG.W.: 17.5kgVolume: 1.7ft3

Add to Basket

Web address

Other goods of this manufacturer :

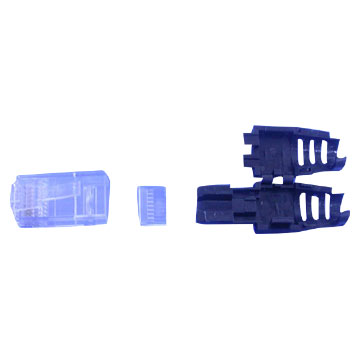

Category 6 Utp Plug With Foldable Sr
