Standard:HDMI Specification Version 1.0, IEC60754-2Rated temperature:80°CRated voltage:30VConductor:Stranded tinned copper, 30 / 28 / 24 AWG are availableInsulation:Foam-Skin-PE or PEOver 85% coverage tinned copper braid shieldJacket:Flame retardant PEPasses UL VW-1 & CSA FT1 vertical flame testApplication:- Supports high-definition video- Plus multi-channel digital audio on a single cable- Provides a digital audio and video interface between anySource, such as a set-top box, DVD player, AV receiver and a digital television (DTV)Electrical Characteristics:Differential Impedance(20°C):100±10ΩPropagation delay skew:Within a pair:≤151ps/mBetween pairs:≤2.42ns/mFrequency Attenuation(dB)300KHz-825MHz: ≤8825MHz-2.475GHz: ≤212.475GHz-4.125GHz: ≤30Far End Cross-Talk: ≤-26dB

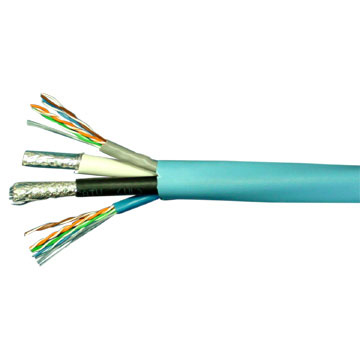

Two RG6 quad shield coaxial cables:- Reference standard: TIA-570,SCTE ISP-IP-001- Complies to SCTE ISP-IP-001- 18 AWG solid bare copper clad steel conductors- Foam-Skin-PE Insulation- Al foil/60% Al b
Two RG6 quad shield coaxial cables:- Reference standard: TIA-570,SCTE ISP-IP-001- Complies to SCTE ISP-IP-001- 18 AWG solid bare copper clad steel conductors- Foam-Skin-PE Insulation- Al foil/60% Al b
Our company is specialized in producing Cat.5e, Cat.6 LAN cable, home networking cable, Cat.5e+RG6 flat hybrid cable, telecommunication cable as well as telephone cable.
Our company is specialized in producing Cat.5e, Cat.6 LAN cable, home networking cable, Cat.5e+RG6 flat hybrid cable, telecommunication cable as well as telephone cable.
Our company is specialized in producing and sell Cat.3, Cat.5e, Cat.6 LAN cable, home networking cable, Cat.5e+RG6 flat hybrid cable, telecommunication cable as well as telephone cable.
Standard:UL1581Rated temperature: 60°CRated voltage: 150VConductor: Solid Bare CopperInsulation: PEJacket: PVCRip cord (optional)Passes UL VW-1 vertical flame testTwo or three or four or ten pair
