HYAT53 Communication Cable
Product Name: HYAT53 Communication CablePlace of Origin: ChinaType: HYAT53Size: 10-2400pairsExecutive Standard: YD/T 322-1996Referred Standard: IEC, ASTM, BSFeatures:1) Structure: annealed copper conductor, solid polyolefin insulation,Jelly filled, polyester coated aluminum tape (PAP) longitudinallywrapped, inner sheathed, plastic coated steel tape (PSP) or aluminumtape (PAP) armored, outer PE sheathed local communication cable2) Installation temperature: Not lower than -5oC3) Operation temperature: -30oC ~+60oC4) Min. bending radius: Not less than 15 times of the outer diameterwhen the outer diameter is not more than 40mm and not less than 20times of the outer diameter when the outer diameter larger than 40mm5) Usage: Transmitting audio frequency signals, analog signals up to150kHz or digital signals up to 2048kbit/s and in certain conditioncan carry digital signals, which is higher than 2048kbit/s6) Application mode: Direct buriedInner packing: Delivery on wooden-iron composite drums, strong enoughsuitable for handling, long distance shipment and storageOuter packing: Wooden battens to be used to protect the drummed cableor even a metal tape secured outside
Structure:Optical fiber ribbons contained and jelly filled loose tubes stranded around the metallic central strength member, water resistant compound material filled in the interstice of the cable cor
Product Name: Optical Fiber Cable (GYDTA)Model Number: GYDTAPlace of Origin: ChinaStructure:Optical fiber ribbons contained and jelly filled loose tubes stranded around the metallic central strength m
Product Name: Optical Fiber Cable (GYFTC8S)Model Number: GYFTC8SPlace of Origin: ChinaStructure:Optical fibers contained and jelly filled loose tubes stranded around the non-metalliccentral strength m

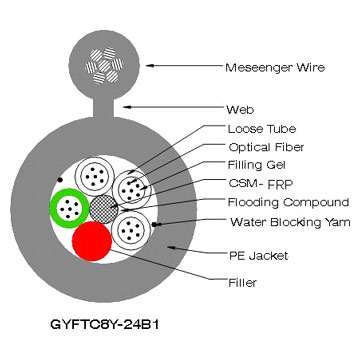

Product Name: Optical Fiber Cable (GYFTC8Y)Model Number: GYFTC8YPlace of Origin: ChinaStructure:Optical fibers contained and jelly filled with loose tubes stranded around the non-metallic central stre

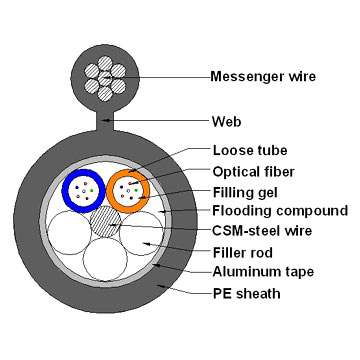

Name: self-supporting aerial optical fiber cable - GYTC8AFeatures:1) Low dispersion and attenuation2) Proper design, precise control for fiber excess length and distinct strandingprocess render the ca
Name: self-supporting aerial optical fiber cable - GYTC8AFeatures:1) Low dispersion and attenuation2) Proper design, precise control for fiber excess length and distinct strandingprocess render the ca
