Multi-Pair Shield Control Cables for Computers and DCs
Structure:Cu core, PE insulation, PVC sheath, woven Cu wire, Cu tape, steel tape armoured,Al/plastic compound film, XLPE insulation, PVC insulation, F46 insulation, F46 sheathThis product is used as signal transmission and connection of inspection instrument of distribution system, computer system and automatic system of power-generating metallurgy petrol chemistry.Features:1) Rated voltage: 300 / 500V2) Max. long time operating temperature:a) XLPE insulated: 90oCb) PE and PVC insulated: 70oCc) F46 insulated: 200oC3) Min. laying temperature:a) PVC sheathed cable: ≥0oCb) F46 sheathed cable: ≥-60oC4) Min. bending radius: non-armored cable ≥six times outer diameter ofcable, armored cable ≥twelve times outer diameter of cable5) Min. environmental temperature:a) Fixed installation: -40oCb) Unfixed installation: -15oC6) When the ambient temperature is 20oC, the insulated resistanceshould not be less than 2,500MΩ.km after charging stably for 1min with DCvoltage of 500V7) The circuit should not be interrupted between the paired shields and betweenthe paired shield and the total shield8) It should withstand the voltage test of 50Hz, AC 2,000V for 5mins betweenthe cable wire core and wire core and between the cable wire and the shield

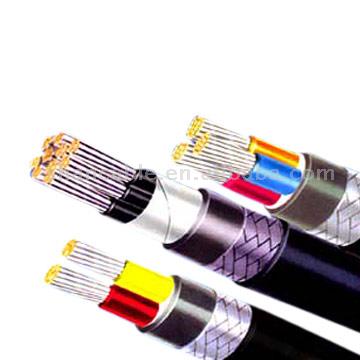

Structure: PVC insulation, PVC sheath, steel armored, PVC sheathed flame-retardanceFeatures:1) The long time working temperature of cable should not be higher than 70°C2) When core is in short-cir
Structure: PVC insulation, PVC sheath, steel armored, PVC sheathed flame-retardanceFeatures:1) The long time working temperature of cable should not be higher than 70°C2) When core is in short-ci

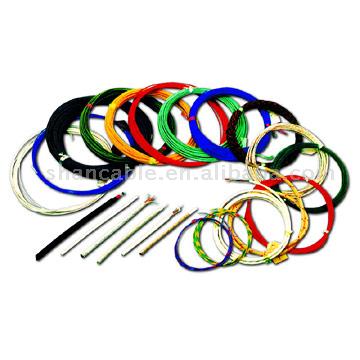

Structure: copper core, PVC insulation, or PVC sheathFeatures:1) If finished insulation core and finished power-line are put into warm water20±5°C for an hour, they will be able to bear stip
