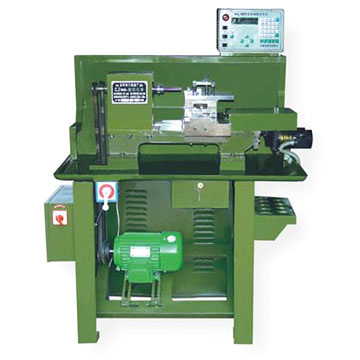

Lathe
Product Name: LatheModel Number: CK6132Place of Origin: ChinaSpecifications of CK6132:1) Maximum rotary diameter: 360mm / 14.17"2) Maximum diameter work-piece: 320mm / 12.6"3) Maximum diameter of bar stocks 48mm / 1.89"4) Maximum turning diameter of tool turret: 150mm / 5.9"5) Maximum length of workpiece: 450mm / 17.72"6) Cut thread/thread cutting metric system: 0.25-12mm7) English system/inch system thread/inch: 28 31/28) From guide way of lathe (bed to centerline of the spindle): 180mm / 7.09"9) Maximum speed of spindle (step-less): 200-4,000rpm10) X axis maximum length of travel: 200mm / 7.88"11) Z axis maximum length of travel: 500mm / 19.69"12) Feed speed in axis X (step-less): 5-1,000mm/min13) Feed speed in axis X (step-less): 10-2,000mm/min14) Fast motion speed in axis X: 6,000mm/min15) Fast motion speed in axis Z: 12,000 mm/min16) Sectional area of tool bar/sectional area of cutter bar: 25 x 25mm17) Distance between centerline of spindle and supporting surface of tool: 25mm18) Taper of the tailstock: no.419) Maximum stroke of the tailstock: 100mm20) Power of master motor: 5.5kW21) Dimensions of lathe tool (L x B x H): 1,230 x 1,150 x 1,750mm22) Net weight: 4,000kg
Specifications of CKD08:1) Maximum rotary diameter: 360mm, 14.17"2) Maximum diameter work-piece: 330mm, 12.99"3) Maximum turning diameter of tool turret: 80mm, 3.15"4) Maximum length of workpiece: 40m
Specifications of CNC60:1) Maximum rotary diameter: 300mm, 11.81"2) Maximum diameter work-piece: 120mm, 4.72"3) Maximum turning diameter of tool turret: 60mm, 2.36"4) Maximum length of workpiece: 40mm
Specification of CKQ6116:1) Maximum diameter of machined sphere: 60mm2) Distance between the centerline of the spindle and the surface of the working table: 85 mm, 3.46"3) Rotary working table: 280mm4
Specifications of ZK-8:1) Dimensions of the working table equally divided into 8 sections: 750mm, 29.53"2) Dimensions of the working table equally divided into 4 sections: 120mm, 4.72"3) Positioning a
Specifications of ZK-8:1) Dimensions of the working table equally divided into 8 sections: 750mm, 29.53"2) Dimensions of the working table equally divided into 4 sections: 120mm, 4.72"3) Positioning a
Specifications of XK300:1) Dimensions of the surface of working table: 700 x 360mm, 27.56" x 14.17"2) Maximum carrying capacity of working table: 200kg3) Distance between the end of the spindle and th
Specifications of XK300:1) Dimensions of the surface of working table: 700 x 360mm, 27.56" x 14.17"2) Maximum carrying capacity of working table: 200kg3) Distance between the end of the spindle and th
Specifications of CJK0632:1) Maximum rotary diameter: 380mm, 14.4"2) Maximum diameter work-piece: 320mm, 12.6"3) Maximum diameter of bar stocks: 40mm, 1.57"4) Maximum turning diameter of tool turret:
Specifications of CJK0632:1) Maximum rotary diameter: 380mm, 14.4"2) Maximum diameter work-piece: 320mm, 12.6"3) Maximum diameter of bar stocks: 40mm, 1.57"4) Maximum turning diameter of tool turret:
