Boring Lathe with Double Main Shifts
Specifications:1) Dimensions of the surface of working table 400 x 350mm15.75" x 13.78"2) Distance between the end of the spindle and the surface of the workingtable: 150mm, 5.91"3) Maximum speed of spindle (stepless): 300-4,000r/min4) Power of master motor: 3kW5) Maximum length of travel of X axis: 400mm, 15.74"6) Maximum length of travel of Z axis: 300mm, 11.81"7) Feed speed in axis X (stepless): 10-1,000mm/min8) Feed speed in axis Z (stepless): 10-1,000mm/min9) Fast motion speed in axis X: 3,000mm/min10) Fast motion speed in axis Z: 6,000mm/min11) Dimensions of lathe tool (L x B x H): 1,660 x 1,500 x 1,560mm12) Net weight: 900kg
Product Name: Boring Lathe with Double Main ShiftsModel Number: TK6033Place of Origin: ChinaSpecifications of TK6033:1) Dimensions of the surface of working table 400 x 350mm, 15.75" x 13.78"2) Distan
Specifications:1) Maximum longitudinal stroke of carriage: 130mm2) Maximum lateral stroke of carriage: 180mm3) Maximum rotary diameter: 250mm4) Maximum speed of bar stock: 30mm/min5) Maximum speed of
Specifications:1) Maximum longitudinal stroke of carriage: 130mm2) Maximum lateral stroke of carriage: 180mm3) Maximum rotary diameter: 250mm4) Maximum speed of bar stock: 30mm/min5) Maximum speed of
Specifications:1) Dimensions of the surface of working table 450 x 250mm, 17.72" x 9.84"2) Distance between the end of the spindle and the surface of the workingtable: 150mm, 5.91"3) Maximum speed of
Product Name: Double Drilling and Boring MachineModel Number: ZK6040Place of Origin: ChinaSpecifications of ZK6040:1) Dimensions of the surface of working table 450 x 250mm, 17.72" x 9.84"2) Distance
Specifications:1) Maximum speed of spindle (stepless): 300/1,500mm, 11.81"/59.06"2) Maximum diameter work-piece: 400mm, 15.75"3) Maximum diameter of bar stocks: 50mm, 1.97"4) Maximum turning diameter

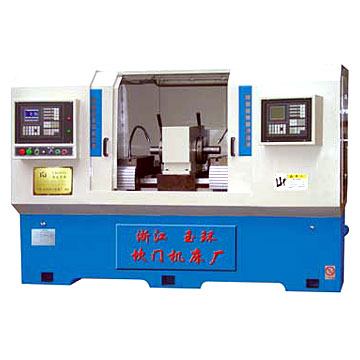

Product Name: Double-End LatheModel Number: CK6050Place of Origin: ChinaSpecifications of CK6050:1) Maximum speed of spindle (stepless): 300/1,500mm, 11.81"/59.06"2) Maximum diameter work-piece: 400mm
Specifications:1) Dimensions of the surface of working table: 800 x 550mm, 3.50" x 21.65"2) Maximum diameter of workpiece: 12mm3) Maximum length of travel: 350mm4) Distance between the end of the spin
Product Name: Grinding MachineModel Number: HK12Place of Origin: ChinaSpecifications of HK12:1) Dimensions of the surface of working table: 800 x 550mm, 3.50" x 21.65"2) Maximum diameter of workpiece:
