This machine is suitable for slitting and rewinding such materialsas BOPP, PET, PVC, PE, aluminum foil and paper. Integratingadvanced mechanical, electrical, optical and pneumatic technologyand components, this model has proven to have high operationalspeed, high stability, and high slitting neatness.Specifications:1) Material thickness: 0.012 - 0.15mm2) Mechanical speed: 600m/min3) Unwinding diameter: Φ3" or 6" / 700mm4) Max. unwinding width: 1300mm5) Width of final roll: 50 - 1300mm6) Rewinding diameter: Φ3" / 148mm7) Deviation-rectifying method: photoelectric track, track edge,track line8) Automatic tension control method: constant / varied tension9) Total power: 15kW10) Machine weight: 3600kg11) Overall dimensions: 3050 x 1950 x 1650mmPerformance and features:1) Whole machine is controlled by PLC system:a) Working parameters can be set using touch screen interfaceb) LCD screen display is used to monitor operational statusc) Functions: start buffer, meter counter2) Automatic tension control system maintains constant unwindingtension3) Taper control can also control unwinding tension according toslitting requirements4) `MITSUHASHI` brand LPC photoelectric automatic alignmentsystem imported from Japan enables edge position control5) Track edge and track line automatically ensure the correctposition of the running material6) Shaftless pneumatic clutch for unwinding roll loading7) Optional hydraulic pressure lift utility8) Main drive and rewinding section is separately driven by twovector control motors9) Rewinding tension is controlled by the automatic PLC digital tapersystem according to the preset parameters and rewinding diameter10) Air differential shaft rewinding roller11) Slip force automatically adjusts multi-rollers to accommodatevarious material thicknesses

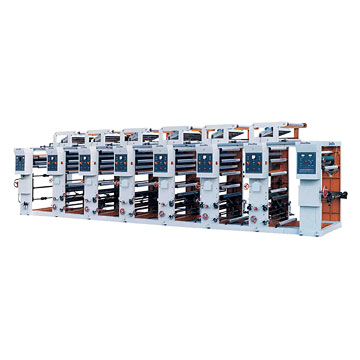

This machine is suitable for multi-color once-through continuousprinting for such roll film materials with excellent printingperformance as BOPP, PET, PVC, PE, aluminum foil and paper.Specifications:1
This machine is suitable for the double-layer and multiple-layerlamination of such roll film materials as BOPP, PET, nylon, CPP,CPE, aluminum foil and paper.Specifications:1) Effective laminating widt
This machine is suitable for the double-layer and multiple-layerlamination of such roll film materials as BOPP, PET, nylon, CPP,CPE, aluminum foil and paper.Specifications:1) Effective laminating widt
This machine uses microcomputer control to automaticallycomplete slitting and rewinding. With stable operationalperformance, this model is widely used for converting suchbase materials as roll film, a
This machine is suitable for the production of medical paperpouches, as well as for applications in the aviation industry (suchas air sickness bags).Specifications:1) Max. diameter of roll material: &

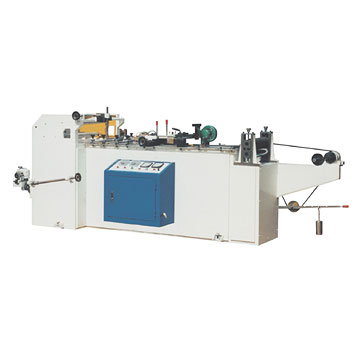

This machine is suitable for the production of middle-sealingplastic film T-type bags and volumetric bags. The bags producedare suitable for packaging beverages, ice cream, biscuits, driedfruit, tea,
This fully automatic packaging machine is suitable for producingvarious plastic-plastic, paper-plastic and paper-paper laminatedmaterials, and is an ideal equipment for producing three-sidesealing and
This machine is suitable for printing roll plastic film, non-wovenfabric, thin leather, paper, aluminum foil, fabric and soft packagingmaterials. With excellent performance, models in this series arei
This flexographic printing machine uses sensitization resin asflexible printing plate. Suitable for printing such packing materialsas polyethylene, polypropylene bags, cellophane and roll paper,this m
