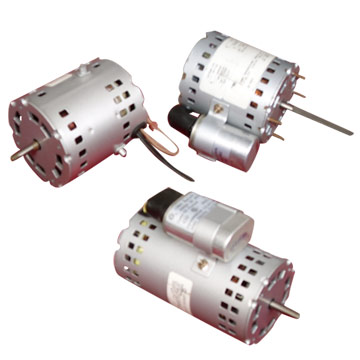

PSC Motor
Product Name: PSC MotorPlace of Origin: ChinaFeatures:1) Permanent split capacitor motor2) Class B insulation3) UL and CSA certification (category code: XEWR2/8)4) Comply with RoHS environmental protection instruction5) NEMA 48 frame 5.6" motor diameter6) Aluminum alloy Die-cast end shields or steel plate end shields7) Thermal protection8) Ball bearing (NMB/ NSK)9) Variety of mounting solutions such as extended mounting studs or cushionrings or Base10) Vented, non-vented, or external/internal fan-cooled options available11) 60°C ambient rated for non-vented structure12) Double or single shaft13) Easily reversible14) Applications: air handlers, blowers, A/C condenser fans, heat pumpcondenser fans, fan coil units, thru the wall unitsSpecifications:1) Voltage: 115V, 208-230V2) Frequency: 60Hz3) Pole: 4p / 6p4) Rotation type: single or rev5) Rpm (hi): 1625 / 1075(typical value, can design to satisfy customer), singleand multi speed6) Output power (hi): (4p) 1/4HP~3/4HP, (6p) 1/4HP~3/4HP7) Case length (in): N/A8) Shaft diameter (in): 1/2(typical value, can design to satisfy customer)9) Can design and produce customized products
