Description
250cc/200cc Liquid Cooled ATV Product Name: 250cc/200cc Liquid Cooled ATVModel Number: FY-200ST-3Place of Origin: ChinaSpecifications:1) Engine:a) Engine type:250/ 200cc, single cylinder, water-cooled, 4-strokeb) Engine displacement (ml): 197c) Bore x stroke (mm): 63.5 x 62.2d) Max. power (kW/r/min): 11/7,500e) Max. torque (N.m/r/min): 14.2/6,000f) Compression ratio: 10.5:1g) Lubrication: pressure / splashh) Minimum fuel consumption (g/kW.h): 3542) Transmission:a) Starting mode: electricalb) Transmission mode: chainc) Brake mode (front/rear): drum/discd) Front hanging: double arm-swinge) Rear hanging: integralf) Brake distance (m/30km): 7g) Shift speed type: five gear with reverse gear (3-2-1-n-r)h) Clutch mode: manual clutch3) External condition:a) Length x width x height (mm): 1,730 x 920 x 1,050b) Minimum turning radius (mm): 3,000c) Climbing degree: 30d) Lamp: head lampe) Seat height (mm): 800f) Wheel base (mm): 1,110g) Front track (mm): 760h) Rear track (mm): 680i) Minimum ground clearance (mm): 150j) Top speed (km/h): 70k) Fuel capacity (L): 7.8l) Tyre dimension (front/rear): at 19 x 7-8/at 18 x 9.5-8m) Battery: 12V, 9An) Cover material: PPo) Color: red, blue, white, yellow, blackPacking:Carton dimensions: 1,520 x 820 x 780mmN.W.: 135kgG.W.: 155kgConveyance:Qty/20` GP: 30pcsQty/40` GP: 63pcsQty/40` HQ: 63pcs Add to Basket
Web address
Other goods of this manufacturer :
300cc Polaris Style ATV
Product Name: 300cc Polaris Style ATVModel Number: FY-300STPlace of Origin: ChinaSpecifications:1) Engine type: single cylinder, air-cooled, 4-stroke2) Power: 14.7kW / 8,000rpm3) Max. torque: 20N.m /
400cc EEC Approved ATV
Specifications:1) Engine type: single cylinder, air-cooled, 4-stroke2) Power: 16kW/6,500rpm3) Max. torque: 26N.m/5,000rpm4) Min. ground clearance: 100mm5) Wheel base: 1,240mm6) Fuel tank capacity: 6.6
400cc EEC Approved ATV
Specifications:1) Engine type: single cylinder, air-cooled, 4-stroke2) Power: 16kW/6,500rpm3) Max. torque: 26N.m/5,000rpm4) Min. ground clearance: 100mm5) Wheel base: 1,240mm6) Fuel tank capacity: 6.6

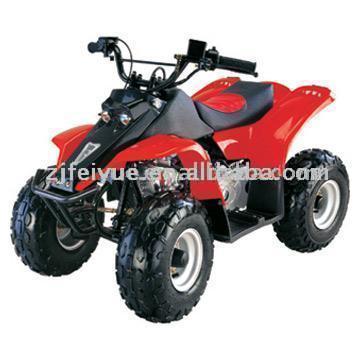

49/47cc Mini Quad
Features:1) User age: up to 14 years old2) Engine: 49cc/47cc, single-cylinder, air-cooled and two-stroke3) Start: pull start4) Speed: 40km/h5) Tank volume: 1. 0L6) Fuel type (unleaded petrol/oil mix):
49/47cc Mini Quad
Product Name: 49/47cc Mini QuadModel Number: FY-AB1-APlace of Origin: ChinaFeatures:1) User age: up to 14 years old2) Engine: 49cc/47cc, single-cylinder, air-cooled and two-stroke3) Start: pull start4
49cc Water-Cooled KTM Dirt Bike
Features:1) Engine type: 49cc, single cylinder, water-cooled, 2-stroke2) Oil type: 1:40 petrol and engine oil mixed3) Rated power: 8kW / 14,000rpm4) Tank capacity: 1.3L5) Ignition: CDI6) Compression r
49cc Water-Cooled KTM Dirt Bike
Features:1) Engine type: 49cc, single cylinder, water-cooled, 2-stroke2) Oil type: 1:40 petrol and engine oil mixed3) Rated power: 8kW / 14,000rpm4) Tank capacity: 1.3L5) Ignition: CDI6) Compression r

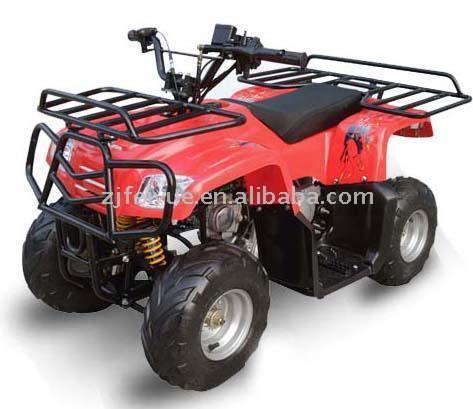

50cc ATV
Product Name: 50cc ATVModel Number: FY-50ST-1Place of Origin: ChinaSpecifications:1) Engine: 50/70/90/110cc, single cylinder, air-cooled, 4-stroke2) Rated power: 2.0kW/7,500rpm3) Max. torque: 2.5N.m/5
50cc ATV
Product Name: 50cc ATVModel Number: FY-50ST-3Place of Origin: ChinaSpecifications:Engine: 50cc/70cc/90cc/110cc, single cylinder, air cooled, 4-strokeStart: electric startMax. speed (km/h): 60Brake: re
