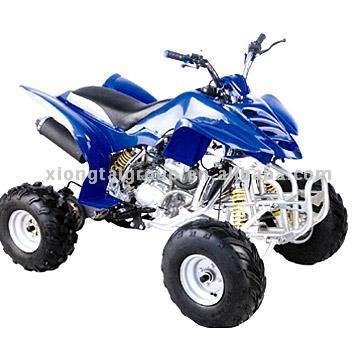

Sports ATV
Specifications:1) Drive system: chain2) Engine type: single cylinder, 4-stroke, forced air-cooled3) Starting mode: electric4) Bore x stroke: 69 x 53mm5) Displacement: 250ml6) Max. speed: 90km/h7) Max power: 10.8kW / 8,000rpm8) Max. torque and rotating speed: 12N.m / 7,000rpm9) Wheelbase: 1,120mm10) Min. ground clearance: 260mm11) Seat height: 830mm12) Brakes: drum for front, disc for rear13) Front / rear tire sizes: 20 x 7-8, 18 x 9.5-814) Max. user load: 150kg15) Assembled dimensions (L x W x H): 1,650 x 1,080 x 1,110mm16) Colors available: red, yellow, blue, green, blackOuter packing:Carton dimensions: 1,420 x 875 x 770mmN.W.: 150kgG.W.: 175kgConveyance:Qty/20` FCL: 20pcsQty/40` HQ: 63pcs
