Description

Vehicles, Spare Parts & Accessories / Parts and Accessories for Vehicles / Parts and Accessories for Automobile Vehicles / Car Audio and Video /

ATV (GY6 Engine 150CC) (ATV (GY6 двигателя 150CC))

Zoom in

Producer information

Company:
Yongkang Wangli Hardware Manufacturing Co., Ltd.

Address:
Hardware Science & Technology Industrial Area, Yongkang, Zhejiang, China (Mainland) Zip: 321300

Phone:
+0086-579-7228877 +7228866

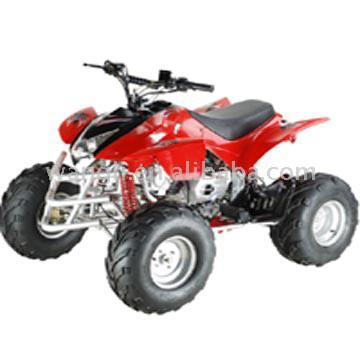

ATV (GY6 Engine 150CC)

Features:1) ATV engine type: 4-stroke, air cooled2) Transmission system: shaft drive, 4-speed, semi automatic3) Bore x stroke: 52.4 x 49.5mm4) Piston displacement: 1075) Max power (kW/rpm): 5.5/8,0006) Max torque (N.m/rom): 6.5/5,7507) Starting system: electric starter8) Min turning radius: 2,400mm9) Ground clearance: 10010) Brake: front and rear by drum11) Parking brake: mechanical lock12) Tire: front 19 x 7-8/2.9Psi; rear 18 x 9.5-8/2.9Psi13) Ignition type: C.D.I14) Fuel tank capacity: 7.8L15) Suspension: front leading arm and rear mono shock swing arm16) Battery: 12V, 7Ah17) Max load capacity: 95kg18) Engine oil capacity: 0.95L19) Gear oil capacity: 0.12L20) Auto lubrication, single cylinder21) Wheelbase: 1,040mm22) ATV size (L x W x H): 1,465 x 850 x 780mm23) Compression ratio: 9.1 : 1

Add to Basket

Web address

Other goods of this manufacturer :

ATV (GY6 Engine 150cc)
	Product Name: ATV (GY6 Engine 150cc)Model Number: WL-ATV125G (WL-ATV04)Place of Origin: ChinaFeatures:125cc: WL-ATV125G150cc: WL-ATV150A1) ATV engine type: GY6 engine, single cylinder, 4-stroke, air c

ATV (Mini Quad)
	Product Name: ATV (Mini Quad)Model Number: WL-A124F3 ALTMANPlace of Origin: ChinaFeatures:1) Engine: 2-stroke, air-cooled2) Displacement: 49cc3) Speed: 45km/h4) Tire: 3.00-45) Tank capacity: 2L6) Oil

ATV (New Model)
	Specifications:1) Engine: 50cc/70cc/90cc2) Max power: 4.2/7,000kW/r/min3) Max torque: 4.8/6,500N.m/r/min4) Ground clearance: 130mm5) Tank capacity: 1.7L6) Transmission mode: chain drive7) Starter: ele

ATV (Polaris)
	Product Name: ATV (Polaris)Model Number: WL-ATV090AC single pinkPlace of Origin: ChinaSpecifications:1) Engine type: 90cc/110cc, 4-stroke, air-cooled, fully automatic2) Starter system: electric starte

ATV (up to 250cc)
	Product Name: ATV (up to 250cc)Model Number: 200CC AIR COOLING WL-ATV200APlace of Origin: ChinaFeatures:1) Engine type: 200cc air cooled2) Starting system: electric start3) Brake (front/rear): double

ATV (with Flame Sitcker)
	Specifications:1) Engine: 90cc, 4-stroke, single cylinder, air cooled2) Max. speed: 45 - 50km/h3) Max. power: 4.2kW/7,000r/min4) Max. torque: 4.8N.m/6,500r/min5) Ignition: CDI6) Rear brake: hydraulic

ATV (Yellow Tree)
	Product Name: ATV (Yellow Tree)Model Number: WL-ATV090AAPlace of Origin: ChinaFeatures:1) Engine: 90cc, 4-stroke, single cylinder, air cooled2) Ignition: CDI3) Rear brakes: hydraulic disc4) Transmissi

ATV 200cc
	Features:1) Engine type: 4-stroke, water-cooled2) Transmission system: chain drive, 4-speed, semi automatic3) Piston displacement: 200ml4) Starting system: electric5) Min. turning radius: 2,400mm6) Gr

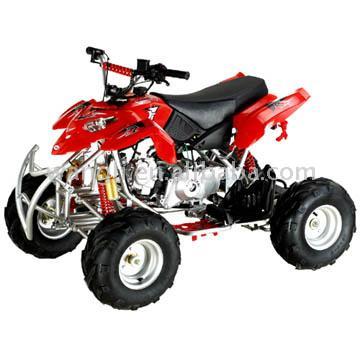

ATV with 7-Inch Wheels
	Product Name: ATV with 7-Inch WheelsModel Number: WL-ATV110AC-7Place of Origin: ChinaSpecifications:1) Engine type: 90cc/110cc, 4-stroke, air cooled, fully automatic2) Starter system: electric starter
