Description
110cc ATV Specifications:1) Engine:a) Engine type: single cylinder, 4 strokes, air-cooledb) Engine displacement: 107mlc) Bore x stroke: 52.4 x 49.5mmd) Max. power: 6/8,000 (kW/r/min)e) Max. torque: 7/6,000 (N.m/r/min)f) Compression ratio: 9.0:1g) Lubrication oil capacity (L): 0.9h) Minimum fuel consumption (g/kW.h): 3652) Transmission:a) Start mode: electricb) Transmission mode: chainc) Brake mode (front/rear): drum/discd) Front hanging: double arm-swinge) Rear hanging: integralf) Brake distance (m/30km): 7g) Shift speed type: four gear with reverse gear(3-2-1-N-R)h) Clutch mode: auto clutch3) External condition:a) L x W x H: 1,730 x 920 x 1,050mmb) Min. turning radius: 3,000mmc) Climbing degree: 30d) Lamp: head lampe) Seat height: 800mmf) Wheel base: 1,110mmg) Front track: 760mmh) Rear track: 680mmi) Minimum ground clearance: 150mmk) Top speed: 55km/hl) Fuel capacity: 7.8Lm) Tyre dimension (front/rear): AT19 x 7-8/AT18 x 9.5-8n) Battery: 12V 9Ao) Cover material: PPp) Color: red, blue, white, yellow, blackPacking:Carton dimensions: 1,520 x 820 x 780mmN.W.: 135kgG.W.: 155kgConveyance:Qty/20` FCL: 30pcsQty/40` FCL: 63pcsQty/40` HQ: 63pcs Add to Basket
Web address
Other goods of this manufacturer :
110cc ATV Big Hummer
Product Name: 110cc ATV Big HummerModel Number: WL-ATV110BPlace of Origin: ChinaFeatures:1) Engine type: single cylinder, 4-stroke, air-cooled2) Engine displacement: 107ml3) Bore x stroke: 52.4 x 49.5
250cc Water Cooled ATV
Product Name: 250cc Water Cooled ATVModel Number: WL-ATV250WBPlace of Origin: ChinaSpecifications:1) engine: 250cc water cooled, 4-stroke, single cylinder2) transmission: chain drive3) brake system: f
Alloy Frame Dirt Bike
Product Name: Alloy Frame Dirt BikeModel Number: WL-D110B (WL-A126)Place of Origin: ChinaFeatures:1) Alloy wheels and hubs with heavy duty spokes2) Alloy handlebars3) Alloy single rear swing arm4) All
ATV
WL-A90D transformer:1) Engine: 90cc/110cc, four-stroke, fully automatic2) Starting system: electric3) Seat height: 68cm4) Transmission: chain5) Power: 52kW/7,500rpm6) Ignition: CDI7) Ground clearance:
ATV (110cc Raptor)
Product Name: ATV (110cc Raptor)Model Number: WL-ATV110A (WL - ATV03)Place of Origin: ChinaFeatures:1) Engine type: 4-stroke, air-cooled with reverse gear2) Transmission system: shaft/chain drive, 4-s
ATV (Army Camo)
Features:1) Engine: 90cc, 4stroke, single cylinder, air cooled2) Ignition: CDI3) Rear brakes: hydraulic disc4) Transmission system: chain5) Gear system: full automatic6) Fuel tank capacity: 4 liters7)
ATV (Army Camo)
Product Name: ATV (Army Camo)Model Number: WL-ATV110AAPlace of Origin: ChinaFeatures:1) Engine: 90cc, 4stroke, single cylinder, air cooled2) Ignition: CDI3) Rear brakes: hydraulic disc4) Transmission
ATV (Blue Color)
Product Name: ATV (Blue Color)Model Number: WL-ATV090AC (blue)Place of Origin: ChinaFeatures:1) Engine type: 90cc/110cc,4-stroke air cooled, fully automatic2) Starter system: Electric starter3) Vehicl

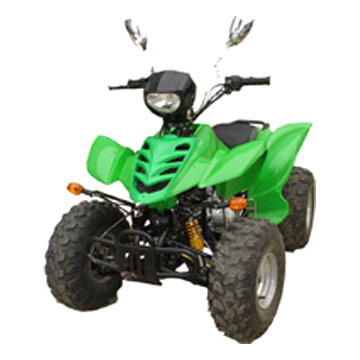

ATV (Double Swing Arm with Lights)
Specifications:1) Engine type: 4-stroke, air cooled2) Transmission system: chain drive, 4-speed, semi automatic3) Bore x stroke: 52.4 x 49.5mm4) Piston displacement: 107ml5) Max. power (kW/r/min): 5.5
