Description
Producer information
Company:Yongkang Jinling Vehicle Co., Ltd.
Address:Science and Technology Hardware Industrial Zone, Yongkang, Zhejiang, China (Mainland)
Phone:+86-579-7225337 +7225336 +7225876
ATV (110CC 2006 New Model) Features:1) Engine type: 4-strokes, air cooled, fully-automatic2) Cylinder arrangement: single cylinder3) Transmission system: chain drive4) Bore x stroke (mm): 41X375) Piston displacement (cc): 1106) Compression ratio: 7.8:17) Max. power (kW / r/min): 5.5 / 8,0008) Max. torque: 6.5 / 5,7509) Starter system: electric starter10) Lubrication: oil injection11) Transmission: single speed12) Size (L x W x H) (mm): 1,335 x 730 x 78013) Wheel base (mm): 82814) Front track (mm): 53015) Rear track (mm): 53016) Seat height (mm): 54217) Ground clearance (mm): max.11018) Rider capacity: 1 person19) Gross weight (kg): 6820) Dry weight (kg): 9021) Brake (front / rear): drum / disc22) Tyre (front): AT16x8-723) Tyre (rear): AT16x8-724) Air pressure (front tyre) (kpa): 2025) Air pressure (rear tyre) (kpa): 2026) Ignition type: C.D.I.27) Fuel tank capacity (L): 3.228) Engine oil capacity (L): 0.629) Front suspension: double A-arm30) Rear suspension: single swing31) Parking brake: mechanical32) Max. speed (km/h): 2333) Max. load capacity (kg): 7534) Battery: 12V / 5A35) Cooling system: air-cooled36) Clutch: autoPacking:Size (mm): 1,310 x 750 x 630Outer packing:Carton dimensions: 1,310 x 700 x 630mmN.W.: 68kgG.W.: 90kgConveyance:Qty/20` FCL: 38pcsQty/40` HQ: 108pcs Add to Basket
Web address
Other goods of this manufacturer :
ATV (110CC-250CC)
Features:1) Engine type: 110cc, 4 strokes2) Bore and stroke: 52.4 x 49.53) Compression rating: 8.8:14) Max. torque: 6.5/5,000rpm5) Max. power: 4.7kW/7,500rpm6) Ignition type: CDI7) Transmission: 4-spe
ATV (200CC/250CC, 2007 New)
1. Engine type: 196cc/248cc, 4 strokes2. Bore and stroke: 63.5x62.2/72x62.23. Compression rating: 9.2:14. Max. torque: 13.5nm/5,500rpm, 17.5nm/5,000rpm5. Max. power: 10kW/7,500rpm, 11kW/7,500rpm6. Ign
ATV (200CC/250CC, 2007 New)
Product Name: ATV (200CC/250CC, 2007 New)Model Number: ATV200FPlace of Origin: China1. Engine type: 196cc/248cc, 4 strokes2. Bore and stroke: 63.5x62.2/72x62.23. Compression rating: 9.2:14. Max. torqu
ATV (250cc, EEC Approved)
Product Name: ATV (250cc, EEC Approved)Model Number: ATV250B (new model in 2006)Place of Origin: China1. engine type :250cc,4 storke2. bore and stroke 72x62.23. compression rating :9.2:14. max torque
ATV 110CC,150CC,200CC,250CC
Product Name: ATV 110CC,150CC,200CC,250CCModel Number: ATV110BPlace of Origin: China1. Engine type:107cc/124.1cc/149.5cc/196cc/248cc,4 storke2. Bore and stroke:52.4x49.5/56.5x49.5/62x49.5/63.5x62.2/72
ATV 50cc
Product Name: ATV 50ccModel Number: ATV50CPlace of Origin: China1. Engine type: 50cc/70cc/90cc/110cc, 4-stroke2. Bore and stroke: 39 x 41.4/47 x 41.4/47 x 49.5/52.4 x 49.53. Compression ratio: 8.8:14.
ATV 50CC to 250CC with EPA Certificate
Thank you for your email. I am very glad that you are interested in our ATV.I am sale manager. All of our ATVs have get the EPA cetificate at the end of May. Include 50cc to 250ccWould you tell me wha

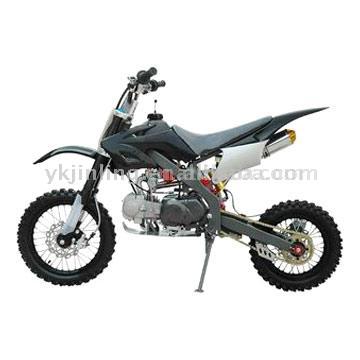

Dirt Bike
Features:1) Steel frame, steel front fork & rear fork, rear shock, steel exhaust pipe,aluminium wheel hub2) Engine type: 50 / 70 / 90 / 100 / 110 / 125cc, single cylinder, 4-stroke,air-cooled3) Start
Dirt Bike
Features:1) Steel frame & rear fork, aluminium front fork, reversed hydraulic frontshock, rear shock, aluminium exhaust pipe,aluminium wheel hub2) Engine type: 50 / 70 / 90 / 110 / 125cc, single cylin
