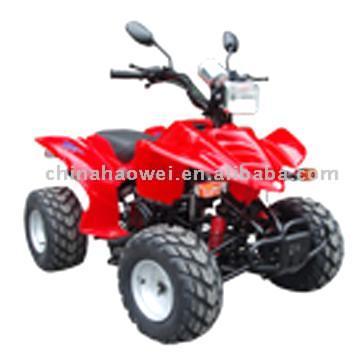

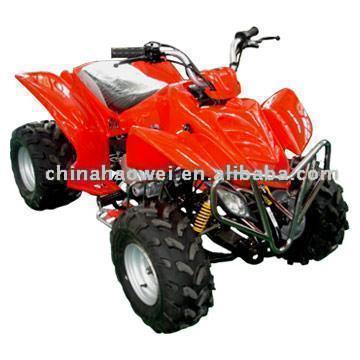

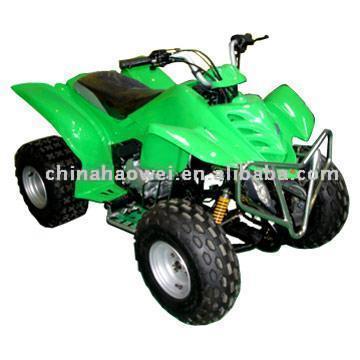

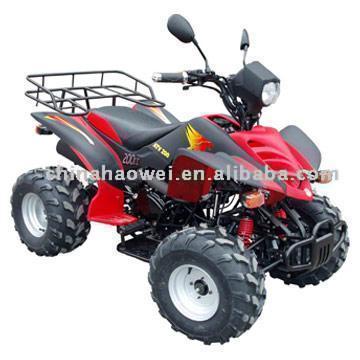

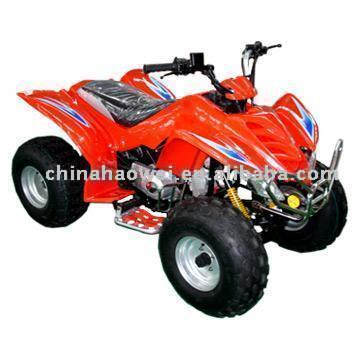

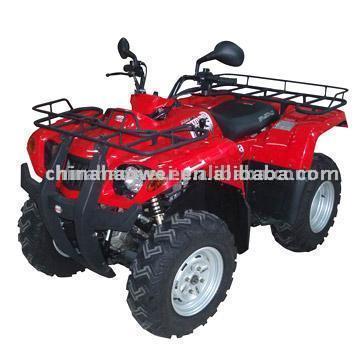

ATV
Specifications: 1) Engine type: single cylinder, air cooling, 4-stroke2) Power: 10kW/7,500rpm3) Max. torque: 13.5N.m/6,000rpm4) Min. ground clearance: 140mm5) Wheel base: 1,000mm6) Fuel tank capacity: 4L7) Transmission mode: chain8) Starting mode: electric9) Tires: a) Front wheels: 19 x 7-8 b) Rear wheels: 18 x 9.50-810) Max. speed: ≥70km/h11) Break type (F/R): drum/disc12) Power source: 12V, 9Ah13) Height of seats: 760mm14) Dry weight: 150kg15) Load capacity: 145kg16) Climbing degree: ≥25°17) Front hanging: double arm-swing18) Rear hanging: integral 19) Cylinder size: 63.5 x 62.2mm20) Displacement: 196.98ml 21) Transmission: 4 gears, with reverse gear, manual clutch22) Min. turning radius: 2,400mm23) Parking trig: mechanical lock24) Ignition mode: CDI25) Engine oil: 1.1L26) Gear oil: 0.2L27) Max. number of riders: 128) Lubrication: press splash29) Compression proportion: 9.2:130) Gas cylinder number: 131) Product dimensions (L x W x H): 1,550 x 920 x 1,000mm32) We can supply a wide range of ATVs and other recreational vehicles Outer packing:Carton dimensions: 1,485 x 835 x 770mmConveyance: Qty/20` GP: 29 unitsQty/40` GP: 64 unitsQty/40` HQ: 66 units
