ATV 200cc
Product Name: ATV 200ccModel Number: ATV200WPlace of Origin: ChinaSpecifications:1) Engine:a) Engine type: 200cc vertical engine, 4-stroke, single cylinder,water-cooled, with inside reverse gearb) Bore and stroke: 63.5 x 62.2mmc) Ignition: C.D.Id) Max. power: 10.0kW/7,500rpme) Max. torque: 13.5N.m/6,500rpm2) Drive train:a) Clutch: manual clutchb) Transmission: 4-speed with inside reverse gearc) Driveline: chain drive3) Chassis, suspension & brakes:a) Front suspension: independent suspension, dual a-arm, hydraulicspring shockb) Rear suspension: swing arm with central mono hydraulic spring shockc) Front brakes: drumd) Rear brakes: disce) Front tires: 19 x 7-8 (sport type)f) Rear tires: 18 x 9.5-8 (sport type)4) Dimensions (L x W x H): 1,800 x 980 x 1,060mm5) Wheelbase: 1,250mm6) Seat height: 800mm7) Turning radius: 2,650mm8) Dry weight: 150kg9) Fuel capacity: 6.6L10) Battery: 12V/9Ah11) Colors: red, blue, green, camouflage, yellow, silver, gold, black, whitePacking:Steel crate and cartonConveyance:Qty/20` FCL: 32unitsQty/40` HQ: 66units
 Add to Basket
 Web address
|
|
|
Other goods of this manufacturer : |
|
|
|
|
ATV 200W (Utility)
|
|
Specifications:1) Engine:a) Engine type: 197cc, 4-stroke, single cylinder, water-cooledb) Bore and stroke: 63.2 x 62.2mmc) Ignition: C.D.Id) Max. power: 10.0kW/7,500rpme) Max. torque: 13.5N.m/6,500rpm
|
| |
|
ATV 200W (Utility)
|
|
|
Product Name: ATV 200W (Utility)Model Number: ATV200W (Utility)Place of Origin: ChinaSpecifications:1) Engine:a) Engine type: 197cc, 4-stroke, single cylinder, water-cooledb) Bore and stroke: 63.2 x 6
|
| |
|
ATV 250-1
|
|
Specifications:1) Engine:a) Engine type: parallel double cylinder, 4-stroke, air-cooled, vertical, 233.9ccb) Bore and stroke: 53 x 53mmc) Ignition: C.D.I.d) Starter: electric2) Drive train:a) Clutch:
|
|
|
|
ATV 250-1
|
|
|
Product Name: ATV 250-1Model Number: ATV250-1Place of Origin: ChinaSpecifications:1) Engine:a) Engine type: parallel double cylinder, 4-stroke, air-cooled, vertical, 233.9ccb) Bore and stroke: 53 x 53
|
| |
|
ATV 250-2D
|
|
Specifications:1) Engine:a) Engine type: single cylinder, 4-stroke, air-cooled, 6 gear, 223ccb) Bore and stroke: 65.5 x 66.2mmc) Ignition: C.D.I.d) Starter: electric2) Drive train:a) Clutch: manual co
|
| |
|
ATV 250-2D
|
|
|
Product Name: ATV 250-2DModel Number: ATV250ccPlace of Origin: ChinaSpecifications:1) Engine:a) Engine type: single cylinder, 4-stroke, air-cooled, 6 gear, 223ccb) Bore and stroke: 65.5 x 66.2mmc) Ign
|
|
|
|

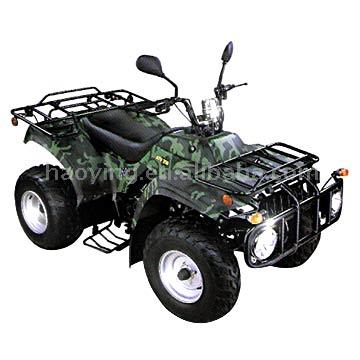

ATV 250-3E
|
|
Specifications:1) Engine:a) Engine type: 233cc, air-cooled, OHV, vertical parallel double cylinder,4-strokeb) Bore and stroke: 53 x 53mmc) Ignition: C.D.I.d) Starter: electric2) Drive train:a) Clutch:
|
| |
|
ATV 250-3E
|
|
|
Product Name: ATV 250-3EModel Number: ATV250ccPlace of Origin: ChinaSpecifications:1) Engine:a) Engine type: 233cc, air-cooled, OHV, vertical parallel double cylinder,4-strokeb) Bore and stroke: 53 x
|
| |
|
ATV 250-4
|
|
Specifications:1) Engine:a) Engine type: 233cc, air-cooled, OHV, vertical parallel double cylinder,4-strokeb) Bore and stroke: 53 x 53mmc) Ignition: C.D.I.d) Starter: electric2) Drive train:a) Clutch:
|
|
|
|
