Automatic Electronic Single End Yarn Strength Tester
INTRODUCTIONAutomatic Electronic Single End Yarn Strength Tester, to determine the breaking load and extension of single yarns unto 5000 cent-grams force. Automatically operated with hydraulic action, provided with scales 0-500cg force and 0-5000cg force, extension scale graduated in mm and percentage of standard test length (250mm) .This Unit can grip sample for test and display, print out test result automatically.APPLICATIONSASTM D2256, 3822SPECIFICITION( 1) Load Range: 0-5000cN( 2) Load Resolution: 1 / 50000( 3) Load Accuracy: (( 4) Accuracy: 2% -100% Capacity of Load Cell (-) 0. 1%0. 5% -1% Capacity of Load Cell (-) 0. 2%( 5) Frequency of data sampling: (>=) 200Hz( 6) Speed Range: 10-1500mm / min( 7) Return Speed: 10-1500mm / min( 8) Elongation Resolution: 0. 1mm( 9) Max test head travel: 250mm( 10) Efficient Length of sample: 250mm( 11) Presetting Force: 0-150cN( 12) DATA Memory: (>=) 4000 tests( 13) Instrument Size: 790 x 420 x 1000 mm (L x W x H)( 14) Instrument Weight: 100kgFEATURES:( 1) Dynamic Data Sampling More than 200HZ, capable to catch peak value, most precisely indicate property of textile material;( 2) Sharp blue LCD Panel, the operator simply selects the required test module and test standard;( 3) A graphical icon on each button clearly illustrates its current function. This greatly simplifies the screen by only showing commands relevant to the current task;( 4) Use Mitsubishi 16bit MCU, Mitsubishi 16bit A / D converter, more excellent anti-jamming, more rapid data transfer;( 5) Built-in Clock generating, and real time display time;( 6) Real time display of on-going test data (Like mean square value, average, max, min, etc)( 7) Able to preset tensile force;( 8) Force unit: N, Kgf, 1b, in, cN can be switched freely;( 9) Report, diagram are handled by computer and print out from printer;( 10) Calibration file to calibrate the unit and indicate with figure;( 11) Operator can use LCD control panel to operate the unit and print testing data without PC (bidirectional controlling) ;( 12) Data can be sent to excel and analysed by computer;( 13) Overlay display of data curve possible.STANDARD CONFIG:( 1) Printer, PC;( 2) Software;( 3) Sharp blue LCD controlling panel;( 4) Precision DC servo (stepper) motor and driver.( 5) Pneumatic grip( 6) Air pump
INTRODUCTIONDigital Shirley Hydrostatic Head Tester. To determine the resistance of dense fabrics, like canvas, linoleum, non-woven fabric, apparel waterproof fabric, etc, to water penetration under p
INTRODUCTIONDigital Thickness Gauge For Textile Structures. Applied pressure 0.1-2000.0 grams force, thickness measurement 0.1-10.00mm or 0.01-100.00mm (specify). Includes one presser foot up to 100mm
INTRODUCTIONElectronic Crockmeter/Rubbing Fastness Tester. To determine the color fastness of textiles to dry or wet rubbing. Provided with a crocking finger of 16mm diameter with a downward force of

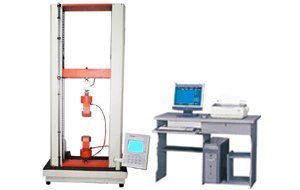

INTRODUCTIONElectronic Universal Strength Testing Machine is designed for a wide range of applications including: Compression, Tensile Testing, Peeling, Flexure, shear etc for many kind of material, s
INTRODUCTIONElmendorf Tearing Tester to determine the ballistic tearing strength of textiles, nonwoven fabric, paper or board. Range from 16000 to 64000 Millimeters with suitable pendulum.APPLICATIONS
YG026M Fabric Strength Testing Machine (Desk Type)INTRODUCTIONFabric Strength Testing Machine is designed for a wide range of applications including: Bending, Compression, Tensile Testing, Peeling, La
Z01B Sample CutterINTRODUCTIONSample Cutters rapidly, accurately and safely cut out circular specimens of fixed diameter. Virtually any type material can be accommodated, including woven, non-woven an

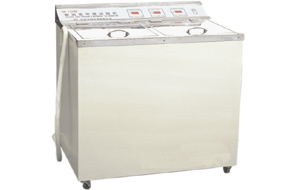

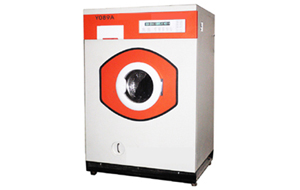

INTRODUCTIONFabric Testing Systems. Accelerated washing and drying apparatus for knitted and woven fabrics to assess shrinkage in accordance with international test methods. Also useful for assessing
YG501D Water Vapor Transmission CabinetINTRODUCTIONWater vapor transmission cabinet is designed for measuring rate of water vapor transmission for fabric, padded cotton, apparel, etc.Water vapor trans
