Automatic Slitting and Rewinding Machine
Used to divide and cut rolls of paper, non-woven fabrics and film into bars, and then roll them into coils, especially used to cut materials of high tensility.Features:1) Easy to adjust the cutting width2) Slitting roll release is controlled by magnetism powder brake, and the releasetension is controlled automatically3) High release accuracy because of optical-electrical hydraulic correction system4) The handwheel regulates and rectifies the deviation device5) Can stop automatically with figure displaying meter and yard machine6) Transmitted by electric machines with decreasing and different speeds7) The process of rewinding:a) Winding-off: by key-type of air shaftb) Winding: by leaf-type of air shaftMain Technical Parameters:1) Max. width of slitting tape: 900mm 1,300mm 1,600mm 1,900mm2) Min. width of slitting tape: 8mm 20mm3) Max.slitting diameter: Φ600mm Φ800mm4) Rewinding diameter: Φ400mm Φ600mm5) Machine speed: 5~80m/min6) Power supply: 2kw 3kw 3.5kw7) Dimensions (Lx Wx H): 200x190x150cm240x190x150cm270x200x160cm300x200x160cm
Features:1) Easy to adjust the cutting width2) Heat-treated alloy steel bottom spindle cutter3) Tensility can be controlled automatically with magnetic powder arrester4) Let-off with photoelectricity

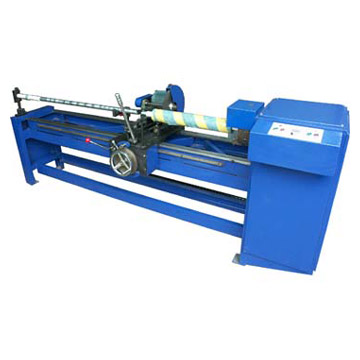

Model No.:YM20Product origin:ChinaSuitable for cutting shoe-making materials, leather, bags and adhesive tapes into different widths.Features:1) Consists of machine head, cutter, guide rail, and movin
Features:1) Consists of machine head, cutter, guide rail, and moving sets2) The frequency converter can adjust the speed of the cloth axle electrical machine tomeet specific requirements3) Unanimously
Features:1) Compact structure and simple operation2) Photoelectric hydraulic pressure margin-neat setting makes the end face ofpackage very neat3) Intelligent length measuring, length calculating mach
Features:1) Compact structure and simple operation2) Photoelectric hydraulic pressure margin-neat setting makes the end face ofpackage very neat3) Intelligent length measuring, length calculating mach

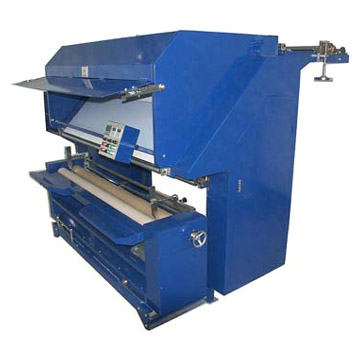

Model No.: YM32Product Origin: ChinaApplied to the cloth inspection and separation of all kinds of cotton, wool and non-woven fabrics, especially for the interlining.Features:1) Easy to operate with c
