Description |
 |
|
|
|
|
|
|
|
|
|

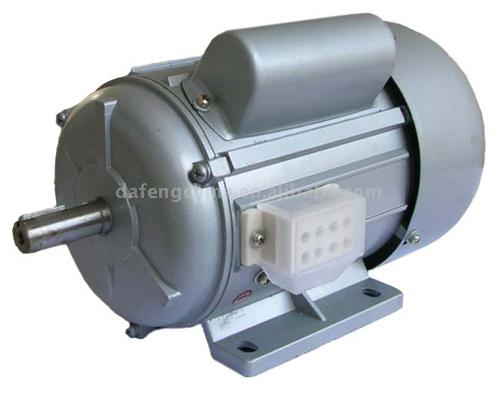

Single Phase Capacitor Asynchronous Induction Electric Motor
Specifications:1) Frame size: 902) Rated power: 1.5kW3) Rated voltage: 110 - 120V, 200 - 240V4) Frequency: 50Hz, 60Hz5) Protection class: IP44, IP54, IP556) Insulation class: E, B, F7) Materials: cast iron, aluminum (FRAME 63-132)8) EFF: EFF3, EFF2, EFF19) Poles: 210) Speed: 2,800rpm11) Cooling method: IC411 (total-enclosed fan-cooled type)12) Mounting types: IMB3, IMB35, IMB5, IMB14, IMB3413) Operating mode: S114) Connection: "Y" type for 3kW and downwards, "D" type for 4kWand upwards15) Ambient temperature: -15oCoC16) Altitude should be lower than 1,000m above the sea level17) Relative humidity: not higher than 90%18) Special motors can be designed according to customers` requirements19) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia,East Asia, South AmericaInner packing:Foam boxesConveyance:Qty/20` FCL: 1,390pcs
