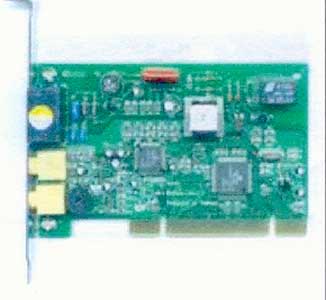

Modem Operating Protocol * V.90/K56flex (up to 56,000 bps, download) * V.34bis (up to 33,600 bps) * V.34 (up to 28,800 bps) * V.32bis (up to 14,400 bps) * V.32 (9,600/4,800 bps) * V.22bis (2,400 bps) * V.23 (1,200 TX/75RX bps) * V.22/Bell 212A (1,200 bps) * V.21/Bell 103 (300 bps) Error Correction Protocol * V.42 and MNP Class 2 to 4 Data Compression Protocol * V.42bis and MNP Class 5 Fax Compatibility * EIA Class 1 fax commands * Group 3 send and receive * ITU-T V.17, up to 14,400 bps * ITU-T V.29, up to 9,600 bps * ITU-T V.27ter, up to 4,800 bps * ITU-T V.21 Channel 2 up to 300 bps Operating Modes * Asynchronous full duplex * Manual/Automatic answer Flow Control * Hardware CTS/RTS * Software XON/XOFF Receive Sensitivity * -40 dBm Transmit Level * Permissive -11+/-1 dBm Line Interface * RJ11, 2wire dial up Diagnostic * Powerup selftest * Local analog loopback test * Local digital loopback test * Remote digital loopback test Dialing capability * DTMF tone and rotary pulse Application Program Interface * Hayes compatible AT command set Call Progress Monitoring * Dial tone, busy tone and ringback detection Dimension * 85.6mm (L) X 54mm (W) X 5mm (H) Comply with PCMCIA Type II
1. Support V.90, K56 FLEX.Software upgrade to V.92 2. V.42MNP2-4 and MNP10 error correction function 3. V.42bis and MNP5 data compression 4. Fax modem send and receive rates up to 14400bps 5. DTE int

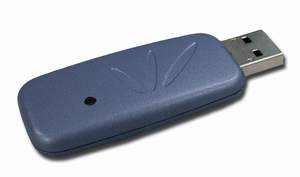

* Uses 2.4 GHz ISM frequency band. * High-speed Wireless Transmissions, up to 721 Kbps Data Throughput. * Enable wireless connectivity between a notebook computer and a cellular phone. * Connections
1. Hard modem 2. ITU V.92 56000bps data transfers 3. V.42 LAPM and MNP 2-4 error correction function 4. V.42 bis and MNP 5 data compression 5. Fax modem send and receive rates up to 14400bps 6. DTE i
1. Hard modem 2. Support V.90,K56 FLEX.software upgarde to V.92 3. V.42MNP2-4 and MNP10 error correction function 4. V.42bis and MNP5 data compression 5. Fax modem send and receive rates up to 14400b
* Protocols IPOA, IPOE, PPPoE,IP, NAT, ARP, ICMP, DHCP client/server,PP P, PA P, CHA P, NT P, HTTP, TFTP,POP 3, RIPv1,v * Management Operatin g system independent Web base User Interface . * LAN Et
P Fully compatible with IEEE 802.11b standard and supports a high data rate up to 11 Mbps P Interoperable with IEEE 802.11b (DSSS) 2.4GHz-Compliant equipment P Two adjustable antennas provide for
