Diesel Welder Generator (Дизель генератор сварочный)

Zoom in

Producer information

Company:
Shanghai Alpha Import & Export Co., Ltd.

Address:
Ronnm C201-202, No.188 Zhangyang Road, Pudong New Area, Shanghai, China (Mainland) Zip: 200120

Phone:
+86-21-68880818

Diesel Welder Generator

Specifications:1) Frequency: 50Hz, 60Hz2) Rated power: 2.5kW, 2.7kW3) Rated voltage: 230V, 120/240V4) Rated current: 11A5) Engine speed: 3,000rpm, 3,600rpm6) Power factor: Cosφ=1.07) Electric welding voltage in idle: 55-65V8) Rated current for electric welding: 160-180A9) Working voltage for electric welding: 25-30V10) Electric welding load lasting rate: 50%11) Regulating range of electric welding current: 80-180A12) Start mode: recoil / electric start13) N.W.: 121kg14) Dimensions (L x W x H): 725 x 490 x 625mm15) Engine model: AT186F(E)16) Type: single-cylinder, vertical, 4-stroke, direct injection, air-cooled dieselengine17) Continuous output: 7.7HP, 9.0HP18) Max. output: 8.5HP, 10.0HP19) Bore x stroke: 86 x 70mm20) Displacement: 406cm321) Fuel tank capacity: 15L22) Lube-oil capacity: 1.65L

Add to Basket

Web address

Other goods of this manufacturer :

Diesel Welder Generator
	Specifications:1) Frequency: 50Hz, 60Hz2) Rated power: 2.5kW, 2.7kW3) Rated voltage: 230V, 120/240V4) Rated current: 11A5) Engine speed: 3,000rpm, 3,600rpm6) Power factor: Cosφ=1.07) Electric weld

Gasoline Chemical Pump
	Specifications:1) Suction port diameter: 50mm2) Discharge port diameter: 50mm3) Max. suction head: 6.5m4) Total head: 21m5) Max. flow rate: 480L/min6) N.W.: 25kg7) Dimensions (L x W x H): 555 x 445 x

Gasoline Chemical Pump
	Specifications:1) Suction port diameter: 50mm2) Discharge port diameter: 50mm3) Max. suction head: 6.5m4) Total head: 21m5) Max. flow rate: 480L/min6) N.W.: 25kg7) Dimensions (L x W x H): 555 x 445 x

Gasoline Engine
	Specifications:1) Engine type: air-cooled, 4-stroke, OHV single cylinder2) Bore x stroke: 60mm x 42mm3) Displacement: 118cm34) Compression ratio: 8.5:15) Rated output: 4HP / 3,600rpm6) Max. torque: 0.

Gasoline Engine
	Specifications:1) Engine type: air-cooled, 4-stroke, OHV single cylinder2) Bore x stroke: 60mm x 42mm3) Displacement: 118cm34) Compression ratio: 8.5:15) Rated output: 4HP / 3,600rpm6) Max. torque: 0.

Gasoline Engine
	Product Name: Gasoline EngineModel Number: G390Place of Origin: ChinaFeatures:1) Model: G3902) Engine type: air-cooled, 4-stroke, OHV single cylinder3) Bore x stroke: 88 x 64mm4) Displacement: 389cc5)

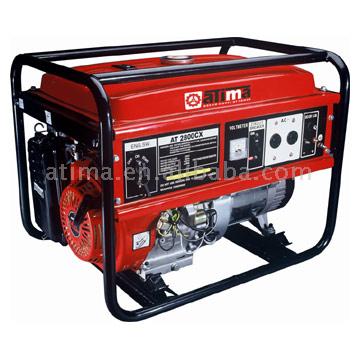

Gasoline Generator
	Specifications:1) Rated output: 2.5kW / 2.8kW2) Max. output: 2.8kW/ 3.0kW3) Rated voltage: 220V / 120V4) Rated frequency: 50Hz / 60Hz5) DC output: 12V, 8.3A6) Fuel tank capacity: 15L7) Fuel: gasoline8

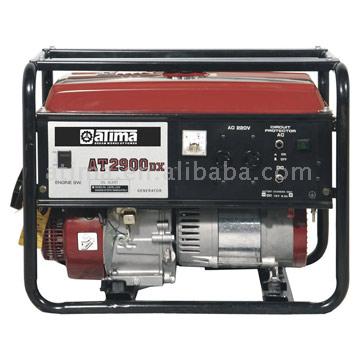

Gasoline Generator
	Specifications:1) Rated output: 2.5kW / 2.8kW2) Max. output: 2.8kW/ 3.0kW3) Rated voltage: 220V / 120V4) Rated frequency: 50Hz / 60Hz5) DC output: 12V, 8.3A6) Fuel tank capacity: 15L7) Fuel: gasoline8

Gasoline Generator
	Specifications:1) Rated output: 2.0kW / 2.4kW2) Max. output: 2.3kW/ 2.9kW3) Rated voltage: 220V / 120V4) Rated frequency: 50Hz / 60Hz5) DC output: 12V, 8.3A6) Fuel: gasoline7) Engine model: AT1608) En
