AC-DC Switching Power Supply (AC-DC Импульсный блок питания)

Zoom in

Send Request

about this service

Producer information

Company:
HIGHLAND ELECTRONICS CO., LTD.

Address:

Phone:
+886-2-82280878

AC-DC Switching Power Supply

1. Features: 1.1 Over current protection:+3.3V,+5V, +12V outputs equipped with short circuit protection V auto restart. 2. Overall performance: 2.1 Total output power:26W Max. 2.2 Efficiency:60% Typ. at Max. load 115 Vac 2.3 Hold up time:8m Sec. Min. at Max. load 115Vac 60Hz 3. Input 3.1 AC Input voltage rating:100 Vac ~ 240 Vac 3.2 AC Input voltage range:90 Vac to 264 Vac 3.3 AC Input current: 1.5A Max. at 110 Vac Max. load 3.4 AC Input frequency:47 Hz to 63 Hz 4. Output CH1 CH2 CH3 CH4 CH5 CH6 CH7 Standby 4.1 O/P voltage: 3.3Vdc 5Vdc 12Vdc -12Vdc -25Vdc 3.5Vac 2.5Vdc 5Vdc 4.2 Min. load current:0.8A 0.8A 0.3A 0.02A 0.002A 0.02A 0.2A 0.02A 4.3 Max. load current:1.8A 1.8A 0.6A 0.05A 0.005A 0.12A 0.9A 0.12A 4.4 Line regulation: 8% 5% 5% 10% 10% + 20% 8% 5% V40% 4.5 Load regulation: 8% 5% 5% 10% 10% + 20% 8% 5% V40% *4.6 Ripple & Noise: 100mV 100mV 150mV 150mV 250mV -------- 100 mV 100mV *4.6 Measured by using a 12 inch twisted pair terminated with a 47uF capacitor and a 0.1uF ceramic in parallel, measured at maximum load.

Add to Basket

Web address

Other goods of this manufacturer :

AC-DC Switching Power Supply
	1. Overall Performance: 1-1. Power On Time (T1) G500 ms Max. 1-2. Rise Time (T2) G0.1 ms

AC-DC Switching Power Supply
	1. General Features: 1.1 Total output power:22W Max. 1.2 Efficiency:The efficiency is higher than 75% Typ.while measuring at 115Vac and Max, load. 1.3 Hold up time:10m Sec. Min. at Max. load 115Vac 6

AC-DC Switching Power Supply
	1. Features 1.1 Over current protection:+5V, +12V outputs equipped with short circuit protection V Latch. 1.2 Over voltage protection:+5V, +12V diode clamping 2. Overall performance 2.1 Total output

AC-DC Switching Power Supply
	1.Full range input (AC90~264V) 2.Low RF emission 3.Low weight(130g) 4.Built-in protected circuit 5.Small size(L165W102H50 mm) 6.Low cost 7.Spec: Input Vac: 90~264 Output Vdc: 5V/4.3A;12V/2.9A;-12

AC-DC Switching Power Supply
	1.Single range input (AC100~240V) 2.Low RF emission 3.Low weight(300g) 4.Built-in protected circuit 5.Small size(L190W85H45 mm) 6.Low cost 7.Spec: Input Vac: 100~240 Output Vdc:3.3V/3A;5V/3A;12V/

AC-DC Switching Power Supply
	1.Single range input (AC85~132V) 2.Low RF emission 3.Low weight 4.Built-in protected circuit 5.Small size 6.Low cost 7.Dimension:L200W111H40 mm 8.Spec: Input Vac: 85~132 Output Vdc: 24V/1.2A *Pow

AC-DC Switching Power Supply
	1.Single range input (AC85~132V) 2.Low RF emission 3.Low weight 4.Built-in protected circuit 5.Small size 6.Low cost 7.Dimension:L95W50H22.6 mm 8.Spec: Input Vac: 85~132 Output Vdc: 5V/3.3A *Powe

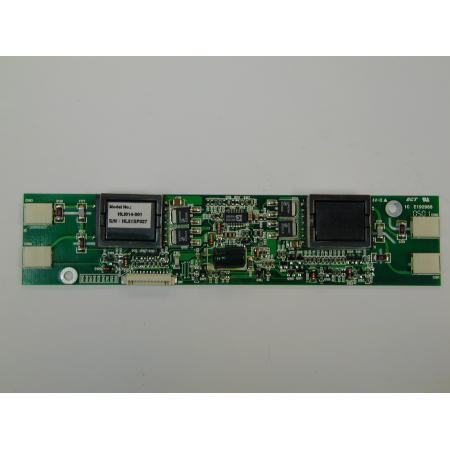

DC-AC Inverter
	1. Scope: This is a DC-AC Inverter to drive cathode lamp. 2. Dimension :160 60 14mm ( L W H ) 3. for Panel: 17`` 4. for 6 lamps

DC-AC Inverter
	1. Scope: This is a DC-AC Inverter to drive cathode lamp. 2. Dimension :160 35 11mm ( L W H ) 3. for PANEL: 14`` 4. for 4 lamps
