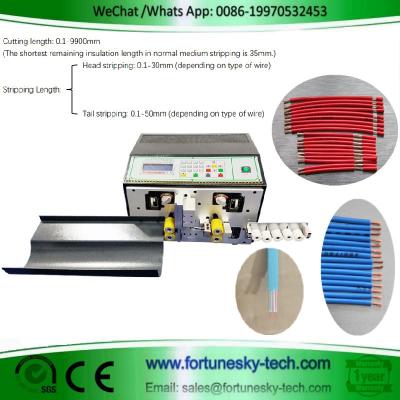

This most advanced electronic product has more compact structure design, more wires can be processed, and higher precision. All debugging actions are completed in the LCD panel. The model of wire cutter and stripping machine efficiency is more than 30% faster than the traditional model. According to the requirements, the cutting speed can be adjusted (0-9 level) to complete the three sectors stripping requirements. Model No. HWN-220 HWN-220+T Dimension 450x450x360mm 450x720x360mm Net. Weight 40KG 60KG Cutting Length 0.1-9900mm (The shortest remaining insulation length in normal medium stripping is 35mm.) Stripping Length Front stripping: 0.1-30mm (depending on type of wire) Rear stripping: 0.1-50mm (depending on type of wire) Twisting Length Front stripping: 0.1-30mm (depending on type of wire) Rear stripping: 0.1-50mm (depending on type of wire) Wire Diameter AWG16-AWG32 Cutting Error 0.2mm+Lx0.2% Voltage AC 110V-220V (50/60Hz) Power Machine stop working:20W, max is 220W.
This fully automatic FEP corrugated pipe cutting machine is suitable for automotive wiring harness, new energy wiring harness, aerospace, motor vehicle, urban rail transportation, high
The Model 100: Your Versatile and Automatic Tubing Cutting SolutionThe Model 100 Automatic Tubing Cutter revolutionizes your cutting experience, offering a one-stop solution for various materials in m
IDC Connector Crimping Machine The clamp of IDC connector crimping machine is adjustable, there are two kinds of specifications, the one with 1.0 maximum spacing can crimp 64P, the one with
Effortless Precision: The PBF-IPEX Crimping Machine for Coaxial Cable AssemblyThe PBF-IPEX Crimping Machine is a revolutionary solution for coaxial cable assembly, specifically designed for 1-PX conne
Unleash Peak Efficiency with the Advanced JY-Series Plastic Injection Molding MachineThe JY-Series Plastic Injection Molding Machine redefines efficiency in plastic product manufacturing. This f
K308 Scrap Copper Recycling Wire Stripping MachineThis scrap copper recycling equipment has multiple stripping channels for different wire sizes, you only need to put the wires into a
This copper wire stripping machine has multiple stripping channels for different wire sizes, you only need to put the wires into a suitable channel, the upper blade and bottom blade will slash open th
Introducing the LB-2.0T Wire Splice Band Machine: The Efficient and User-Friendly Splicing SolutionThe LB-2.0T Wire Splice Band Machine sets a new standard for efficiency and user-friendliness in wire
