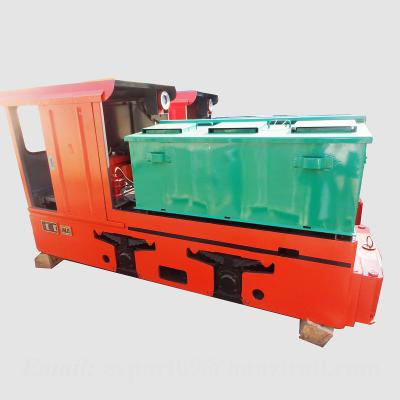

Best Quality Railway Locomotive Battery Locomotive for Pulling Wagon


5Ton Battery LocomotiveModelCTY5Total Weight(T)5Track Gauge(mm)500, 600, 762, 900Traction(KN)7.06Max Traction(KN)12.26Speed(km/h)7Max Speed(km/h)14Battery Voltage(V)90Battery Capacity(Ah)330/385Power(KW)7.5*2Length(mm)3100Width(mm)1034, 1082, 1220Height(mm)1550Coupler Height(mm)210/320Wheelbase(mm)850Wheel Diameter(mm)520Min Curve Radius(m)6ControllerResistance or IGBTBraking MethodMechanical Brake+Electrical Brake

Add to BasketAdd to Basket Web addressWeb address


Other goods of this manufacturer :
Best Quality Railway Steel Rail UIC54 UIC60 60E1 54E1 in Stock
Best Quality Railway Steel Rail UIC54 UIC60 60E1 54E1 in Stock (Best Quality Railway Steel Rail UIC54 UIC60 60E1 54E1 in Stock)
1. Light rail of GB11264-89 Standard, YB222-63 StandardSize: 6kg, 9kg, 12kg, 15kg, 22kg, 30kg, 8kg, 18kg, 24kg Material: 55Q/Q235b Standard: GB11264-89 standard, YB222-63 standa
Mining Wagon Mine Car Railway Wagon Manufacturer
Mining Wagon Mine Car Railway Wagon Manufacturer (Mining Wagon Mine Car Railway Wagon Manufacturer)
Five models of wagons supply:1.Side Dump Mining Wagon2.Fixed Mining Wagon3.Pedal Side-dump Mining Wagons4.Hydraulic Side Dump Mining Wagons5.Curved Rail Side Dump Mining Wagons
Railroad Fastener Rail Clip Manufacturer
Railroad Fastener Rail Clip Manufacturer (Railroad Fastener Rail Clip Manufacturer)
We have many kinds of steel rail clips including SKL1, SKL2, SKL3, SKL12, SKL14, SKL75, E1609, E1809, E1813, E1817, E2001, E2007, E2009, E2055, E2056, E2063, PR401, PR415, PR601, Fastclip, Deenik Cl
Railway Baseplate Rail Tie Plate for Supporting Rails
Railway Baseplate Rail Tie Plate for Supporting Rails (Railway Baseplate Rail Tie Plate for Supporting Rails)
1, Railway  steel tie plate overviewThe rail plate is one of the important components of the  track structure, in the wheel and rail power system plays an important role in vibration. With the de
Railway Fastening System Bolt&Nut&Washer Manufacturer
Railway Fastening System Bolt&Nut&Washer Manufacturer (Railway Fastening System Bolt&Nut&Washer Manufacturer)
Hanzi railway fasteners including:1.Railway sleeper spike, Square head coach screw, Drive spike, Track spike;2.TR thread screw spike,Self tapping screw spike;  Timber Sleeper Screw
Railway Fishplate Rail Joint Bar for Connecting Two Pcs of Rails
Railway Fishplate Rail Joint Bar for Connecting Two Pcs of Rails (Railway Fishplate Rail Joint Bar for Connecting Two Pcs of Rails)
Fishplate for UIC Standard Steel Rail Steel Rail TypeSteel Rail Weight (KG/M)Fishplate StandardFishplate MaterialUIC5454.43UIC45#,55#UIC6060.34Fishplate for BS Standard Steel Rail BS50'O'24.833
Railway Rail Clamp for Crane Rail Fastening
Railway Rail Clamp for Crane Rail Fastening (Railway Rail Clamp for Crane Rail Fastening)
Hanzi Industrial Shanghai Co., Ltd specializes in manufacturing railway accessories. As an ISO certified company,we have a large selection of track accessories and tools to fit your needs:
