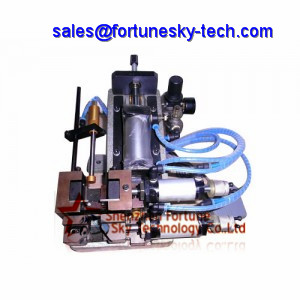

Feature: is suitable for small wire cable processing, such as AC/DC, power cord, computer cable, electronic cable, multi-core cable. Cutter Types & Options:Stripping cutter 1 set (2 pieces), LL-305 will be equipped with flat cutter in default, other models with v-cutter in default, flat cutter suits for flat cable, v-cutter suits for wire diameter 4.0mm or less (may adjust the size), round cutter suits for wire diameter 4.0mm above (diffirent wire size,diffirent round cutter size).Please kindly provide your wire diameter and insulation thickness for choosing a suitable blade and model. Machine Working VideoSpecificationsModel No.LL-305LL-310LL-315LL-330LL-416LL-520Stroke50mm100mm150mm330mm150mm500mmStripping (Diameter)Max 7mmMax 12mmMax 18mmMax 20mmMax 25mmMax 40mmPower VoltageAC 110V/220V/60Hz/20HzAir Pressure3-7KG/CM2Force31-73kg49-115kg84-196kg84-196kg165-300kg400kgNet.Weight20KG25KG35KG65KG45KG102KGSize: mm400x300x270480x330x280660x390x3401100x550x450615x425x375900x700x600
MODULAR PLUG Automatic Terminal Machine / RJ45 Crimping Machine Machine Working VideoAvailable in 220V/60hz or 110V/50hz power.Motor: 60 watts.Compact easy relocateFeatures:•Apply to general
This rotary coaxial cable stripping machine is mainly used for processing coaxial cable and special single wire, using the most advanced rotating turret, to improve the accuracy and speed.
Electric Scrap Wire Stripping machine FS-918KOBThis model of electric scrap wire stripper is widely used for all types of electric wire, high pressure electric cable,optimic cable
Electric Scrap Wire Stripping Machine FS-918KOThis model of electric scrap wire stripper applies to most types of electric wires, copper clad aluminum wires, steel
Electric Scrap Wire Stripping Machine FS-918KOBThis model of electric scrap wire stripper applies to most types of electric wires and cables, copper clad alu
Electric Scrap Wire Stripping machine FST-918KOFThis model of electric scrap wire stripper applies to most types of electric wires and cables, copper clad aluminum wires, steel wires, e
This H05VV-F dip soldering machine integrates the functions of wire separation, stripping, twisting, tinning and neat cutting , can be completed in one time, saving 4 working positions compa
