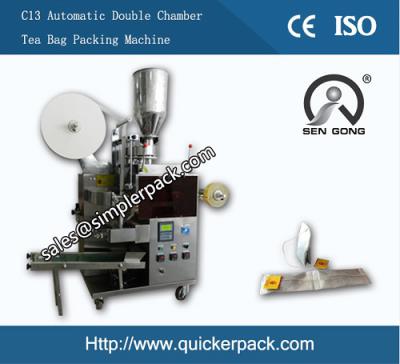

Double Chamber Cameron Tea Bag Packing Machine
//Application: //
It is suitable for double chamber tea bag products packing, such as black tea, oolong tea, Pu'er tea, organic herbal tea, scented tea, fruit tea, flower tea and other drinks granules like coffee etc.
//Features: //
1.This can automatically complete bag making, filling, measuring, sealing, thread feeding, tag attaching, cutting and counting etc. It would highly improve the working efficiency and reduce labor expense.
2.Pins only need to be stapled by hand.
3.PLC control system and automatic temperature control system are adopted, which can effectively control the sealing temperature within the standard range.
//Technical data: //
Machine type: Tea Bag Packing Machine Series
Machine model: C13
Machine name: Automatic Double Chamber Tea Bag Packing Machine
Packing material: Filter paper, Thread, Tag
Measuring: Measuring cup filler
Filling range: 3-15ml
Bag size: L:150mm (80 +70 mm, bi-fold double chamber bag);
W:40mm. Similar to "Lipton" tea bags.
Filter paper width: 87mm
Tag size: L:20mm , W:25mm
Thread length: 155~200mm
Packing speed: 20~40 bags/min
Power supply: 220V/50HZ/1.6KW
Machine dimension: 900*950*1800mm(L*W*H)
Machine weight: 350KGS
//Application: //
It is suitable for tea bag packing kinds of drinks granules in tea bag with thread and tag, with outer envelope, such as black tea, oolong tea, Pu'er tea, organic herbal tea, scente
//Application: //It is suitable for multi-function packing kinds of drinks granules in tea bag with thread and tag, with outer envelope, such as black tea, oolong tea, Pu'er tea, organic herbal tea, s
//Application: //
It is suitable for tea packaging products such as loose leaf tea(like Darjeeling, Assam, Ceylon, Keemun etc.), organic herbal tea, health care tea, flower tea(like rose tea, jasmine
//Application: //
It is suitable for tea bag products packing, such as kinds of drinks granules like black tea, oolong tea, Pu'er tea, organic herbal tea, scented tea, fruit tea, flower tea and other
